SOIL COMPACTORS

SD110C

  • 24,471 lbs
  • 99.2 hp
  • 29,225/54,629 lbf

Introducing a new level in compaction performance in the Volvo SD110C, created specifically for the Indian market. The versatile, reliable and durable.

Contact us

Overview

Specifications

Features

COMPACT YOUR COSTS

Introducing a new level in compaction performance in the Volvo SD110C, created specifically for the Indian market. The versatile, reliable and durable single drum compactor is designed to help you achieve maximum return on your investment. Packed with features including a new display, powerfully efficient engine and the highest centrifugal force in its class, count on the SD110C to deliver optimum productivity and profitability.

TECHNICAL SPECIFICATIONS FOR SD110C

Here are the key specifications for this product model. Want more details?
Download the brochure or contact us.
METRIC IMPERIAL
Operating weight (with ROPS) 11,200 kg 24,691 lbs
Centrifugal force 130/243 kN 29,225/54,629 lbf
Vibration frequency 30 hz 1,800 v/min
Gradeability49.7 % 49.7 %
Rated engine power 74 kW 99.2 hp
Amplitude 1/1.9 mm 0.04/0.07 in
Drum width 2,134 mm 32.8 ft
Articulation angle +/-40 degree +/-40 degree
Oscillation angle +/-17 degree +/-17 degree

Operating Weight (CECE) with Sunroof

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

  • Download the SD110CD brochure, with all the details and specifications. (PDF, 957.6KB)

FEATURES & BENEFITS

DO MORE IN LESS TIME

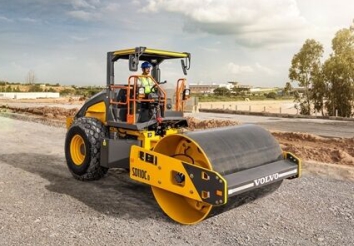

Achieve material target density in fewer passes in the SD110C, combining a heavy drum with the highest centrifugal force in its class.

TAKE CONTROL

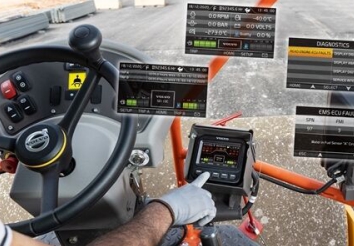

Unlock the full potential of your machine with the new 4.3” display. Available information via the display includes travel speed, trip meter, total working hours, engine rpm and high coolant temperature indicator. Service notifications as well as information regarding battery condition and DEF/fuel levels help to maximize uptime.

BUILT TO LAST

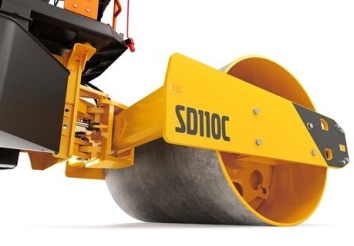

Experience the ultimate in reliability and uninterrupted productivity with a robust drum assembly. Designed and built by Volvo, you can count on the highest standards of component quality in the SD110C, including strong center joint and wide front bumper, including semi-automatic special purpose machine-welded seams. The durably designed eccentric assembly further contributes to a long service life.
