Volvo EC950E

EXCAVATOR
ENQUIRE NOW CALL US
OVERVIEW

Perform a variety of tasks with greater speed in Volvo’s heavy-duty EC950E, utilizing advanced technology to increase productivity and efficiency. Whether you’re working on a quarry, in mass excavation or any other application, the big and powerful EC950E excavator and Volvo’s durable wear-resistant components will maximize your profitability and uptime.

KEY BENEFITS
  • ✓95-ton class for maximum mining production
  • ✓6 m³ bucket for large rock and overburden removal
  • ✓D16 engine tuned for high-altitude and hot conditions
  • ✓Reinforced undercarriage for abrasive terrain
  • ✓Full ActiveCare remote support and diagnostics
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC950E Full Specs

TECHNICAL SPECIFICATIONS FOR EC950E
METRICIMPERIAL
Operating weight89,960 - 91,840 kg1,98,328 - 2,02,472 lbs
Bucket capacity3.9 - 6 m³5.1 - 7.8 yd³
Lifting capacity, along undercarriage37,460 kg82,585 lbs
...at reach / height6 / 1.5 m20 / 5 ft
Max. digging reach12,270 mm40' 3.1" ft in
Max. digging depth7,120 mm23' 4" ft in
Breakout force, SAE J1179 (Normal)424 kN95,318 lbf
Tear out force, SAE J1179 (Normal)408 kN91,722 lbf
Overall width4,515 mm14′ 9.8″ ft in
Tail swing radius4,700 mm15′ 5″ ft in
Gross power450 kW603 hp
...at engine speed1,800 rpm1,800 rpm

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC950E Apart

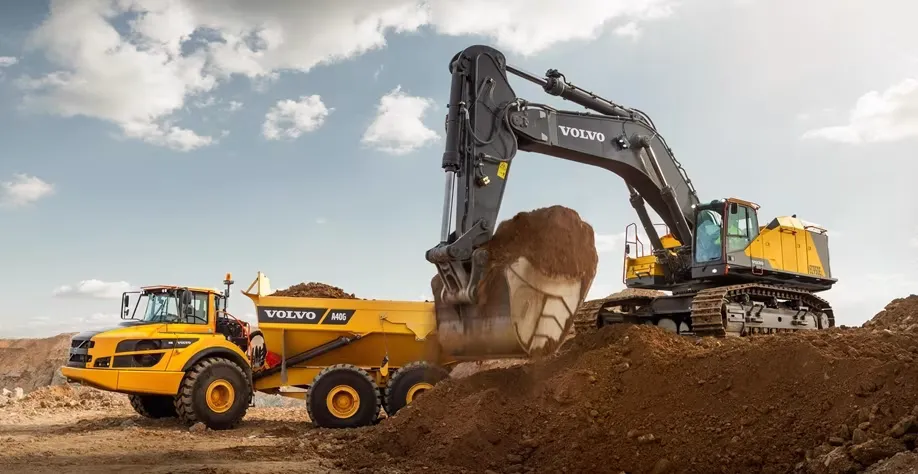

Volvo EC950E — Productivity

Bigger machine, bigger results

Gain more tons per hour in Volvo’s largest crawler excavator, delivering and a fast and efficient on site production.

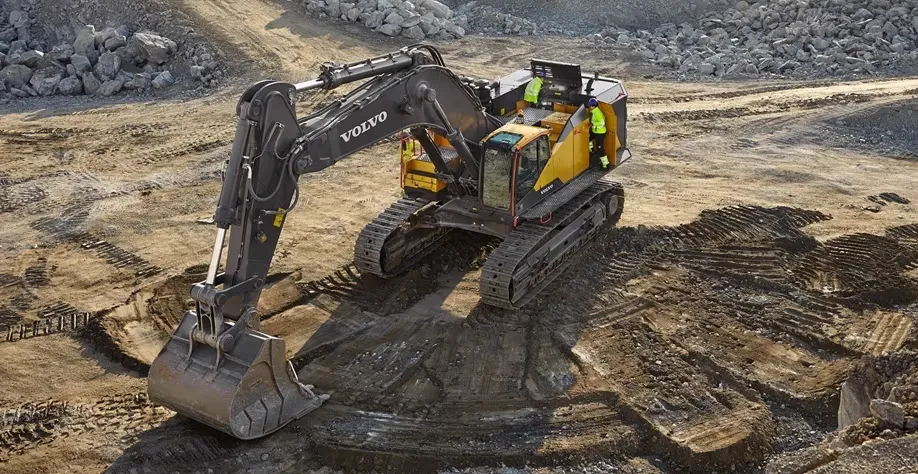

Volvo EC950E — Efficiency

EASY SERVICE ACCESS

Maintenance points are easily accessed via the wide-opening compartment doors using central and surrounding walkways.

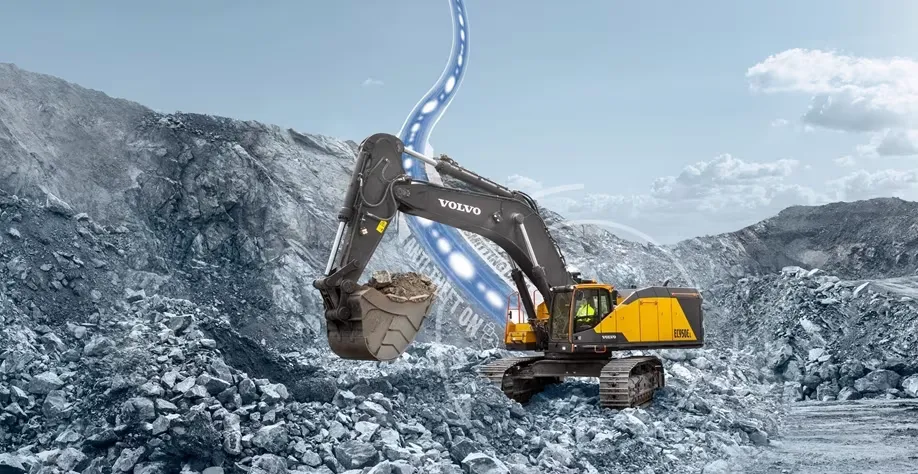

Volvo EC950E — Comfort

MACHINE MONITORING MADE EASY

Maximize uptime with the GPS monitoring program works with the machine’s diagnostic system to allow you to remotely track usage, productivity, fuel consumption and more.

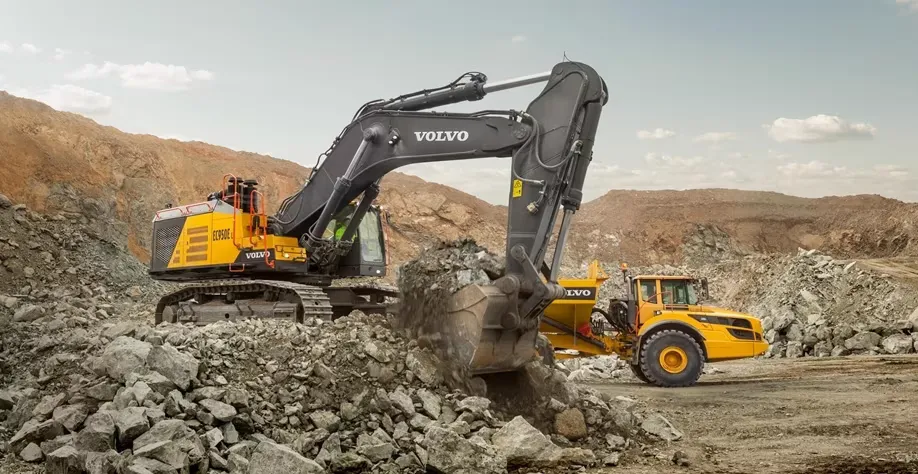

Volvo EC950E — Uptime

SUPERIOR DIGGING FORCE

The EC950E features superior digging force, particularly when working with hard and heavy materials.

Where It Works

Designed for Every Application

The EC950E delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

FAQs

Frequently Asked Questions

What is the Volvo EC950E?+
A 95-tonne class crawler excavator built for large-scale earthmoving, quarrying, and heavy construction tasks.
What is the operating weight?+
Approximately 95,000+ kg, depending on configuration.
What is the bucket capacity?+
Typically 4.5–6.0 m³, depending on the bucket type.
What is the maximum digging depth?+
Around 10–11 meters.
What are the common applications?+
Heavy earthmoving, mining support, infrastructure, and large construction projects.
Is the EC950E fuel-efficient?+
Yes, engineered for high performance with optimized fuel consumption.
What attachments can be used?+
Buckets, hydraulic breakers, grapples and other heavy-duty tools.
Does it come with warranty support?+
Yes, with manufacturer warranty and dealer service support.
Is the EC950E suitable for tough terrain and heavy lifting?+
Yes, built for powerful performance and reliable operation in demanding conditions.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing and availability.
