Volvo EC750D

EXCAVATOR
ENQUIRE NOW CALL US
OVERVIEW

For ultimate performance and low fuel consumption, the EC750D crawler excavator gets the job done whether you’re working at a mine, quarry or in heavy construction applications. The machine’s engine delivers increased horsepower and fuel efficiency, while its electro hydraulic system provides excellent control for faster cycle times.

KEY BENEFITS
  • ✓Volvo D16 — 393 kW for maximum production
  • ✓Built for 24/7 operation in harsh conditions
  • ✓Large cab with vibration-isolated mounting
  • ✓Three working modes for different applications
  • ✓ActiveCare telematics for remote fleet management
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC750D Full Specs

TECHNICAL SPECIFICATIONS FOR EC750D
METRICIMPERIAL
Operating weight72,700 - 74,700 kg1,60,275 - 1,64,685 lbs
Bucket capacity3.3 - 6.1 m³4.3 - 6.75 yd³
Lifting capacity, along undercarriage26,110 kg57,563 lbs
...at reach / height6 / 1.5 m20 / 5 ft
Max. digging reach11,460 mm37′ 7″ ft in
Max. digging depth7,210 mm23' 8" ft in
Breakout force, SAE J1179 (Normal)325 kN73,063 lbf
Tear out force, SAE J1179 (Normal)314 kN70,560 lbf
Overall width4,290 mm14′ 1″ ft in
Tail swing radius4,140 mm13′ 7″ ft in
Gross power393 kW534 hp
...at engine speed1,800 rpm1,800 rpm

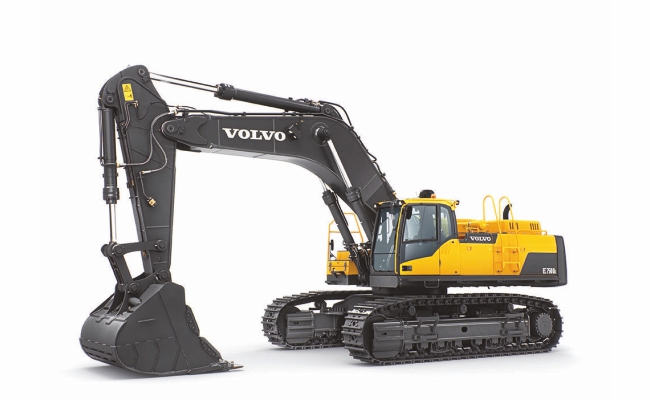

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC750D Apart

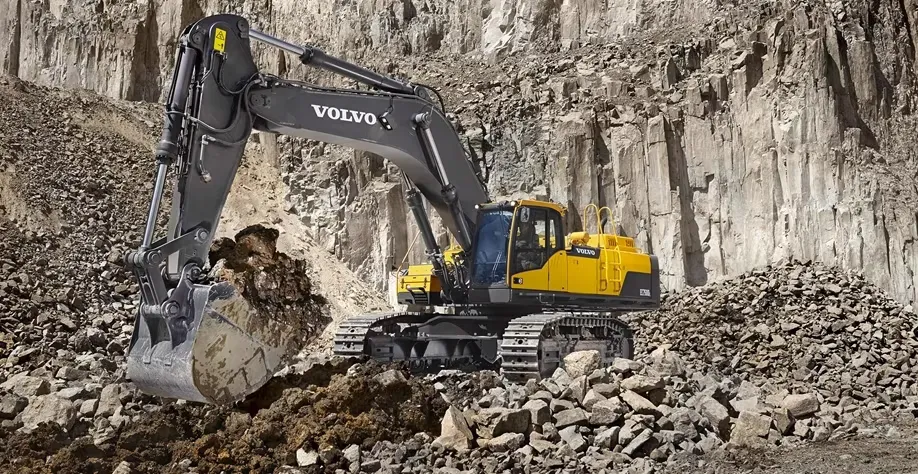

Volvo EC750D — Productivity

Volvo D16 engine

The high quality D16 engine delivers 11% increased horsepower for high productivity and increased fuel efficiency.

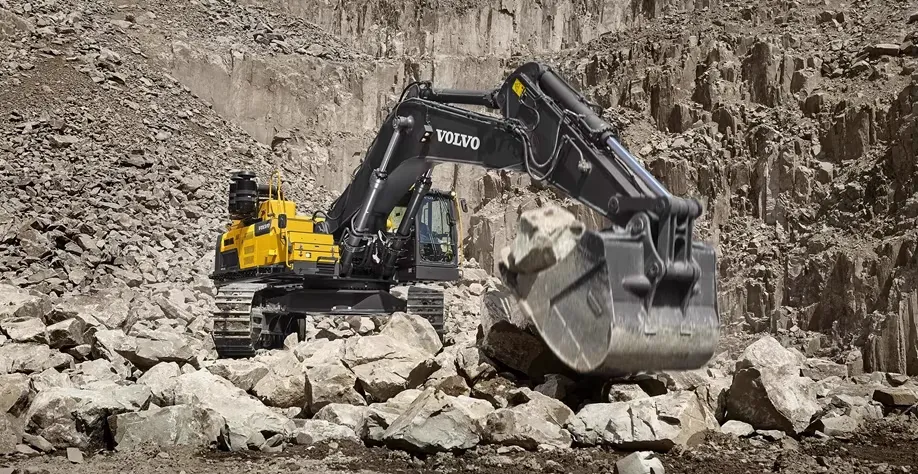

Volvo EC750D — Efficiency

Digging force

The constant high system pressure delivers greater digging force and reduced cycle times to get the job done faster.

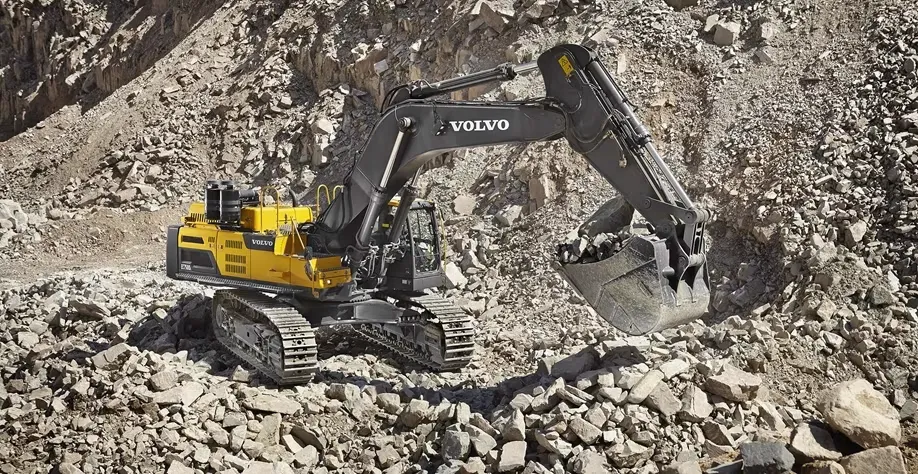

Volvo EC750D — Comfort

Boom and arm

The reinforced heavy-duty boom and arm increases reliability and machine uptime, even in challenging applications.

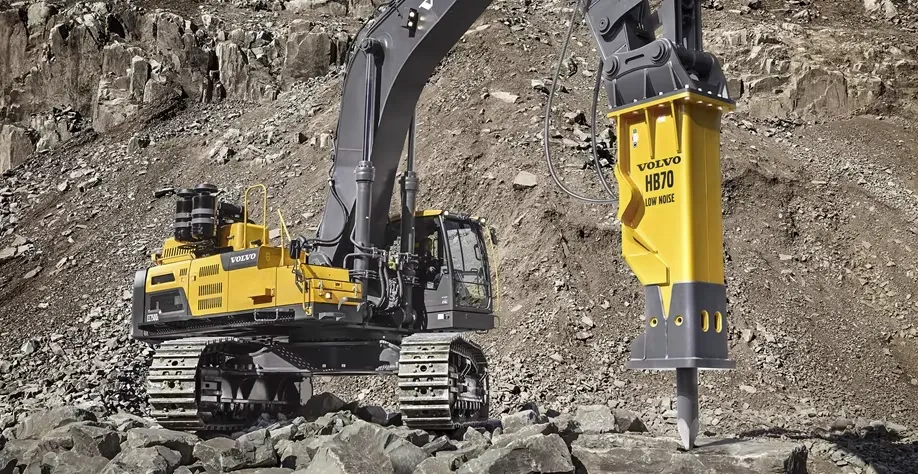

Volvo EC750D — Uptime

Attachments

A range of Volvo attachments including hard wearing buckets are an integrated part of the excavator, delivering maximum productivity.

Volvo EC750D — Feature

Customer Support Agreements

Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services.

Where It Works

Designed for Every Application

The EC750D delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

FAQs

Frequently Asked Questions

What is the Volvo EC750D?+
A 75-tonne class crawler excavator designed for heavy earthmoving, mining support, and large infrastructure projects.
What is the operating weight?+
Approximately 75,000+ kg (varies by configuration).
What is the bucket capacity?+
Typically around 4.5–5.5 m³, depending on the bucket type.
What is the maximum digging depth?+
Approximately 9.5–10.0 meters.
What are the common applications?+
Large construction, mining support, quarry work and heavy infrastructure excavation.
Is the EC750D fuel-efficient?+
Yes, engineered for powerful performance with optimized fuel use.
What attachments can be fitted?+
Buckets, hydraulic breakers, grapples, and other heavy-duty tools.
Does it come with warranty and service support?+
Yes, with manufacturer warranty and dealer service support.
Is the EC750D suitable for tough terrain and heavy lifting?+
Yes, built for strong performance, stability and durability in demanding conditions.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing and availability.
