Volvo L350H

WHEEL LOADER
ENQUIRE NOW CALL US
OVERVIEW

With a proud history dating back to the L320 in 1985, Volvo has been developing and refining our wheel loader technology for decades. The new L350H continues this evolution, building on the success of its predecessor with a host of upgrades, making it the perfect choice for a wide range of applications – from mining and quarrying, through to heavy infrastructure. The result is a heavy-duty wheel loader which delivers a lower total cost of ownership and more profitable performance.

KEY BENEFITS
  • ✓3rd Generation OptiShift — up to 15% fuel efficiency improvement
  • ✓Up to 10% faster cycle times with new lift/tilt cylinders
  • ✓Up to 22% more tractive force from optimized gear shifting
  • ✓4000-hour axle oil change interval (doubled) — major service cost reduction
  • ✓10" Volvo Co-Pilot display with Load Assist suite of apps
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications
Technical Specifications

Volvo L350H Full Specs

TECHNICAL SPECIFICATIONS FOR L350H
METRICIMPERIAL
Static tipping load at full turn34,700 kg76,500 lbs
Bucket capacity6.2 - 12.7 m³8.11 - 16.6 yd³
Operating weight50,000 - 56,300 kg1,10,231 - 1,24,120 lbs
Breakout force450 kN1,01,160 lbf
EngineVolvo D16EVolvo D16E
Max power at1,700 - 1,800 rpm1,700 - 1,800 rpm
...ECE R120 net397 kW532 hp
...ISO 9249, SAE J1349 net395 kW530 hp
Max torque at1,400 rpm1,400 rpm
...ECE R120 net2,550 Nm1,881 lbf ft
...ISO 9249, SAE J1349 net2,547 Nm1,879 lbf ft
Tires35/65 R33, 875/65 R3335/65 R33, 875/65 R33
...SAE J1995 gross397 kW532 hp
...SAE J1995 gross2,550 Nm1,881 lbf ft

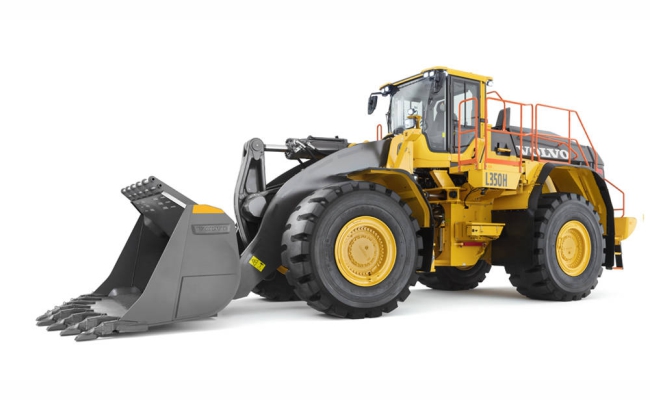

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the L350H Apart

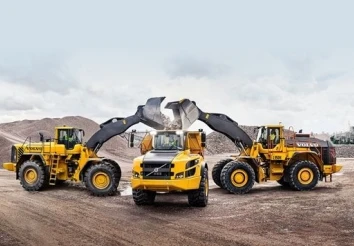

Volvo L350H — Productivity

WHAT´S NEW?

The new and improved L350H builds on the success of its predecessor to deliver up to 10% more productivity and up to 15% more fuel efficiency, combined with a significant reduction in service costs.

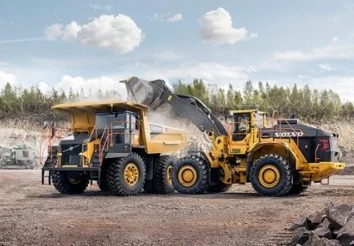

Volvo L350H — Efficiency

BUILT FOR DEMANDING JOBS

The strong frame structure and proven Z-bar lifting arm with double sealing on each of the pins is joined by a reinforced upper center hinge and new Volvo axles. Combined with purpose-built Volvo Attachments, the result is a machine built to take on the toughest of jobs.

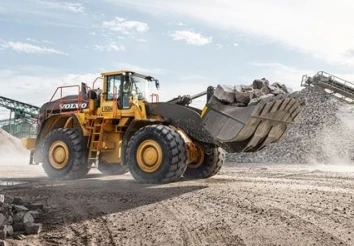

Volvo L350H — Comfort

YOUR PROFITABILITY PARTNER

Enhance the profitability of your operation in the upgraded L350H, featuring an all-new Volvo transmission which enables third-generation OptiShift. Established features and complementary services, such as the Load Assist suite of apps accessed from the in-cab 10” Volvo Co-Pilot display, further improve fuel efficiency.

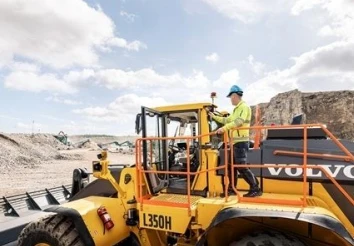

Volvo L350H — Uptime

OPERATOR IN FOCUS

Step inside the best cab on the market, providing an unrivalled operator experience. The levels of comfort, convenience and safety in the L350H will help operators achieve optimum results – shift after shift.

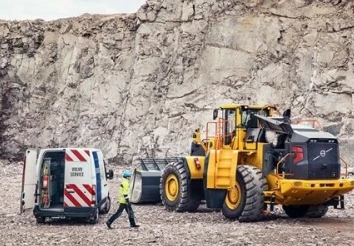

Volvo L350H — Feature

MORE UPTIME, LESS SERVICE COSTS

Keep working for longer with reduced maintenance requirements and easy service access. Proactive tire monitoring and telematics connectivity keeps downtime to a minimum, getting you back to work without delay.

Where It Works

Designed for Every Application

The L350H delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Material loading, stockpiling, and site leveling.

⛏️
Quarry & Mining

Aggregates handling and material stockpiling.

⚓
Port Handling

Bulk material handling at ports and logistics yards.

♻️
Recycling

Waste sorting, scrap handling, and recycling facilities.

🌾
Agriculture

Grain handling, silage, and farm material management.

🏗️
General Construction

Loading, dozing, grading, and site work.

🏭
Industrial

Factory yards, steel plants, and logistics centers.

💧
Water Projects

Dam, canal, and irrigation project support.

Attachments

Attachments & Accessories

BUCKETS (4)

BUCKETS (4)

BUCKETS (4)

BUCKETS (4)

BUCKETS (4)

BUCKETS (4)

L350H
