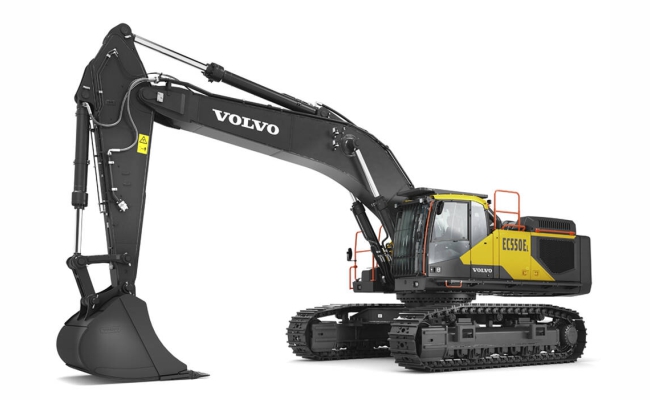

Volvo EC550E

EXCAVATOR
ENQUIRE NOW CALL US
OVERVIEW

The Volvo EC550E provides the levels of durability and performance more commonly expected from a 60-tonner, making it the perfect choice for heavy-duty digging and mass excavation. Boasting superb operator comfort, outstanding levels of uptime, up to 35% increase in productivity and 22% improvement in fuel efficiency – this machine raises the bar for what a 55-tonne excavator can achieve.

KEY BENEFITS
  • ✓D13 engine for class-leading fuel efficiency
  • ✓Ideal for mines, quarries and large dam projects
  • ✓High breakout force for hard rock and consolidated soils
  • ✓Comfort Drive Control (CDC) joystick
  • ✓Volvo ActiveCare remote monitoring and support
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC550E Full Specs

TECHNICAL SPECIFICATIONS FOR EC550E
METRICIMPERIAL
Operating weight54,500 - 56,300 kg1,20,152 - 1,24,120 lbs
Gross power320 kW430 hp
Bucket capacity2.4 - 4.2 m³3 - 5 yd³
Lifting capacity, along undercarriage21,670 kg47,774 lbs
...at reach / height6 / 1.5 m20 / 5 ft
Max. digging reach11,450 mm37′ 7″ ft in
Max. digging depth6,870 mm22' 7" ft in
Breakout force, SAE J1179 (Normal)267 kN60,024 lbf
Breakout force, SAE J1179 (Boost)287 kN64,520 lbf
Tear out force, SAE J1179 (Normal)227 kN51,032 lbf
Tear out force, SAE J1179 (Boost)243 kN54,629 lbf
Overall width3,900 mm12′ 10″ ft in
Tail swing radius3,880 mm12′ 9″ ft in
...at engine speed1,600 rpm1,600 rpm

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC550E Apart

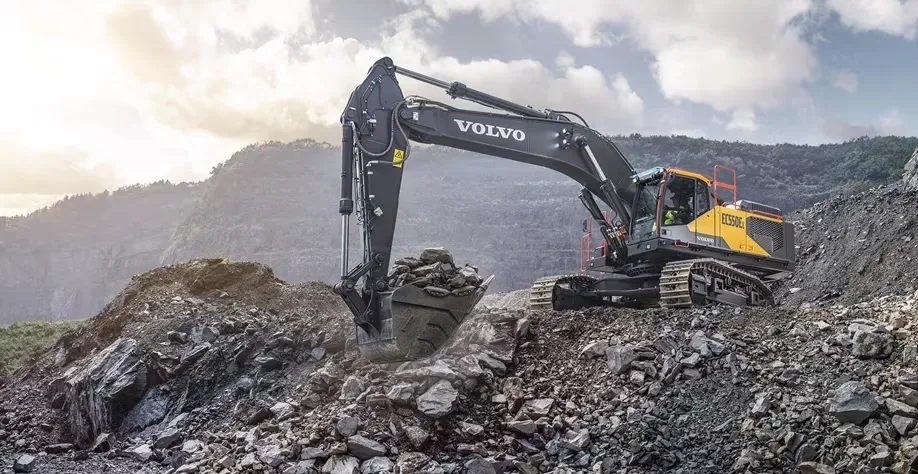

Volvo EC550E — Productivity

Set new standards

Boost productivity by up to 35% with the EC550E. Available with a range of optimum-sized buckets, the Volvo Crawler Excavator sets new standards for the industry.

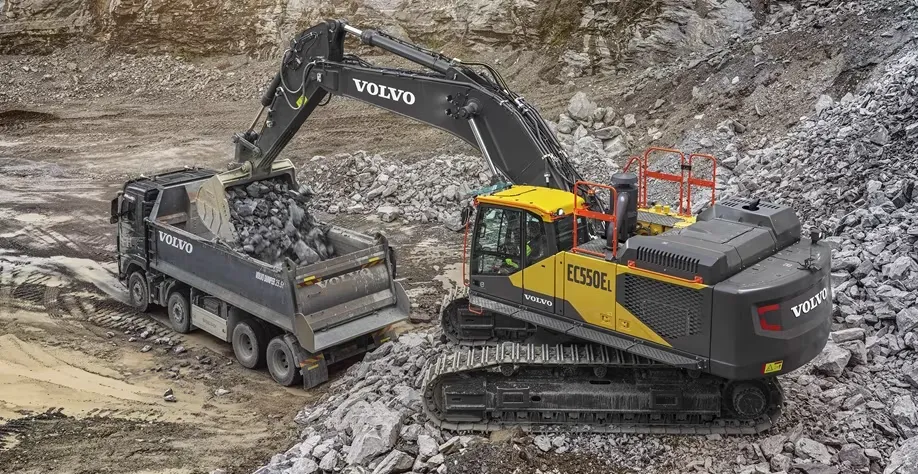

Volvo EC550E — Efficiency

UP TO 22% MORE FUEL EFFICIENCY

Reduce costs and boost profits thanks to the new electro-hydraulic system with Independent Metering Valve Technology (IMVT) – the latest pioneering innovation from Volvo – and a host of Fuel Efficiency Services.

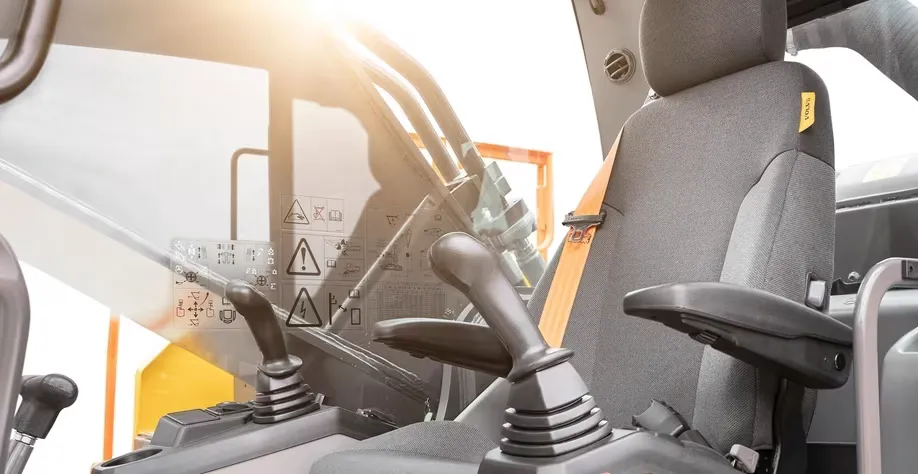

Volvo EC550E — Comfort

For your comfort and safety

Whether working inside or on the machine, you can be sure that the highest levels of control, comfort and safety have been considered in every design detail of the EC550E.

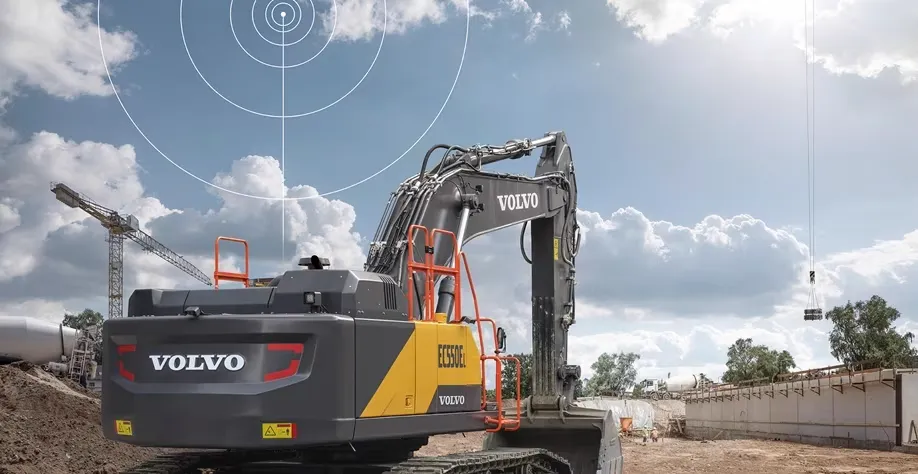

Volvo EC550E — Uptime

Up to the challenge

The EC550E is ready to rise to the challenge in the most demanding conditions, with a number of features and services which contribute to outstanding reliability, reduced maintenance requirement and maximum uptime.

Where It Works

Designed for Every Application

The EC550E delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

FAQs

Frequently Asked Questions

What is the Volvo EC550E?+
A 50-tonne class crawler excavator built for heavy-duty digging, mass excavation, and large-scale construction work.
What is the operating weight?+
Approximately 54–58 tonnes, depending on configuration.
What is the bucket capacity?+
Around 2.4–4.2 m³.
What is the maximum digging depth?+
Approximately 7.6–7.7 meters.
What are the common applications?+
Heavy earthmoving, quarry work, infrastructure projects, and large construction sites.
Is the EC550E fuel-efficient?+
Yes, it is designed for high productivity with optimized fuel efficiency.
What attachments can be used?+
Buckets, hydraulic breakers, grapples, and other heavy-duty tools.
Does it come with warranty and service support?+
Yes, with manufacturer warranty and dealer service support.
Is the EC550E suitable for tough working conditions?+
Yes, built for powerful performance, stability and durability.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing and availability.
