Volvo EC480D

EXCAVATOR
ENQUIRE NOW CALL US
OVERVIEW

Get productive with Volvo’s EC480D crawler excavator. These machines perform with greater digging force and shorter cycle times and feature increased…

KEY BENEFITS
  • ✓Volvo D13F engine — best-in-class power density
  • ✓Optimized hydraulics for 10% lower fuel use
  • ✓Lifting capacity monitoring for safety
  • ✓Fits rock bucket, tiltrotator and demolition attachments
  • ✓Remote diagnostics via Volvo ActiveCare
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC480D Full Specs

TECHNICAL SPECIFICATIONS FOR EC480D
METRICIMPERIAL
Operating weight47,300 - 53,100 kg1,04,280 - 1,17,070 lbs
Bucket capacity1.77 - 3.8 m³2.31 - 4.97 yd³
Lifting capacity, along undercarriage15,670 kg34,546 lbs
...at reach / height6 / 1.5 m20 / 5 ft
Max. digging reach13,260 mm43′ 6″ ft in
Max. digging depth9,170 mm30' 1" ft in
Breakout force, SAE J1179 (Normal)230 kN51,706 lbf
Breakout force, SAE J1179 (Boost)251 kN56,427 lbf
Tear out force, SAE J1179 (Normal)160 kN35,969 lbf
Tear out force, SAE J1179 (Boost)174 kN39,117 lbf
Overall width3,440 mm11′ 3″ ft in
Tail swing radius3,800 mm12′ 6″ ft in
Gross power270 kW367 hp
...at engine speed1,800 rpm1,800 rpm

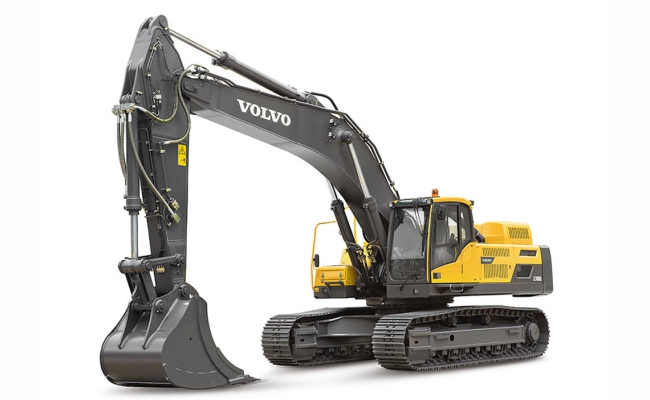

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC480D Apart

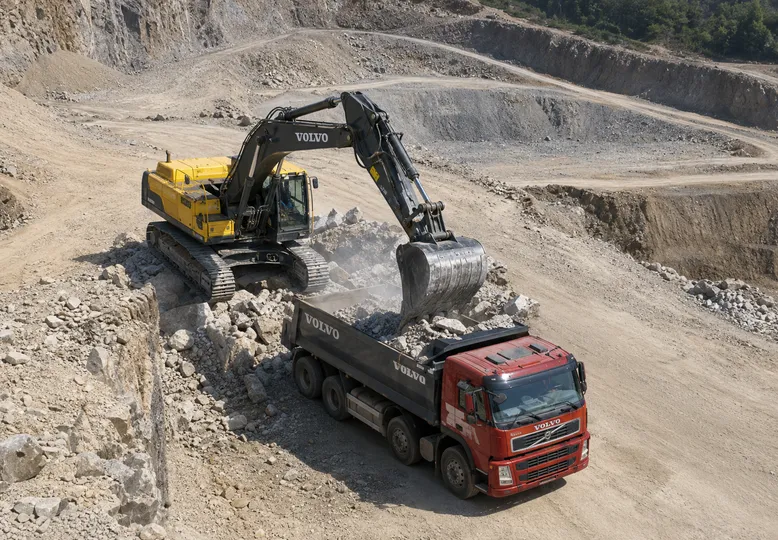

Volvo EC480D — Productivity

FUEL EFFICIENCY

The high quality D16 engine delivers 11% increased horsepower for high productivity and increased fuel efficiency.

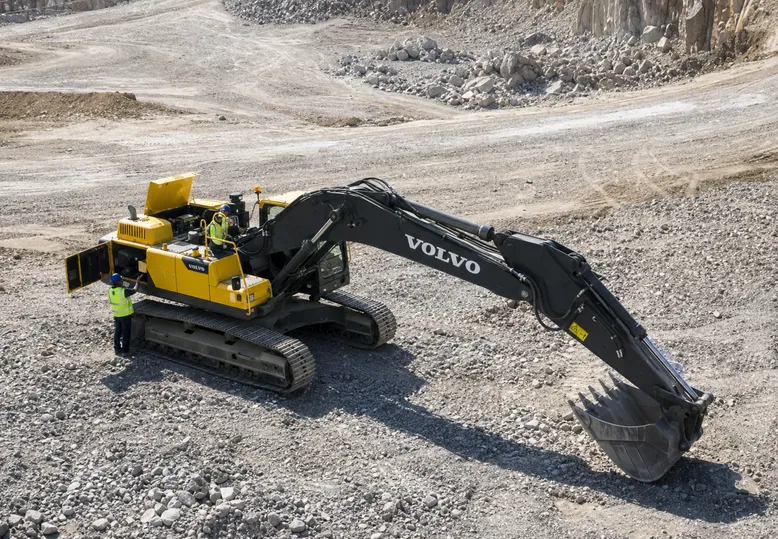

Volvo EC480D — Efficiency

SERVICEABILITY

The constant high system pressure delivers greater digging force and reduced cycle times to get the job done faster.

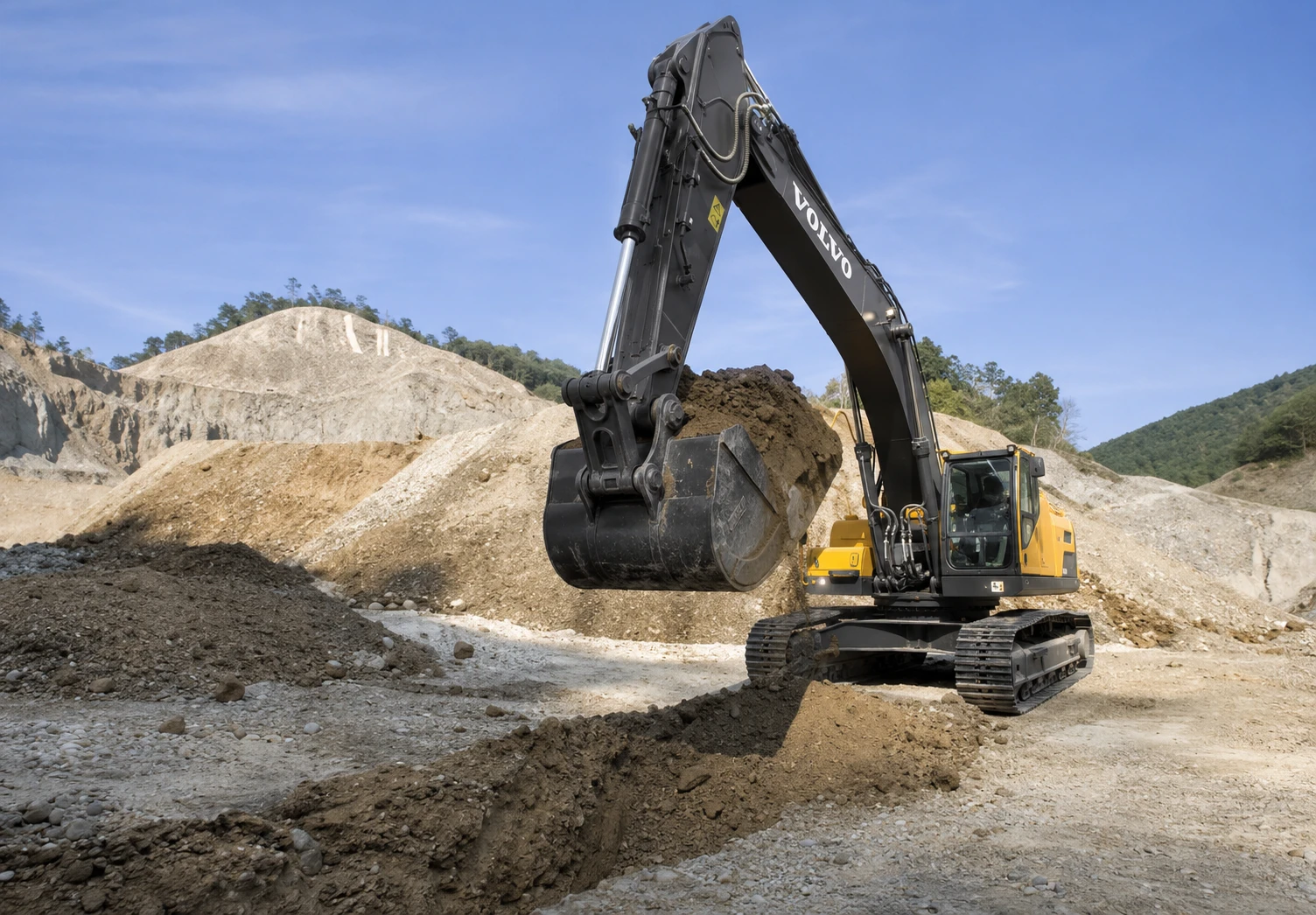

Volvo EC480D — Comfort

DIGGING POWER

The reinforced heavy-duty boom and arm increases reliability and machine uptime, even in challenging applications.

Volvo EC480D — Uptime

VOLVO CAB

A range of Volvo attachments including hard wearing buckets are an integrated part of the excavator, delivering maximum productivity.

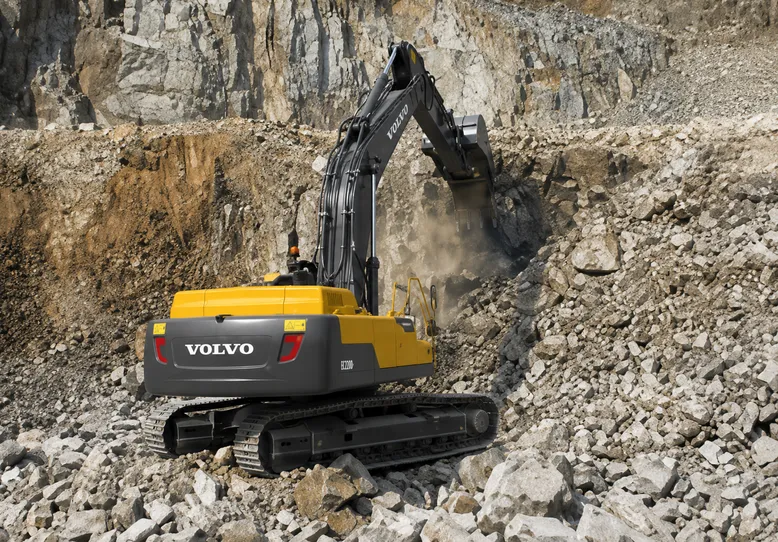

Volvo EC480D — Feature

ROBUST UNDERCARRIAGE

Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services.

Where It Works

Designed for Every Application

The EC480D delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

FAQs

Frequently Asked Questions

What is the Volvo EC480D?+
A 48-tonne class crawler excavator designed for heavy-duty earthmoving and construction applications.
What is the operating weight?+
Approximately 48,000 kg (varies by configuration).
What is the bucket capacity?+
Typically 2.0–3.0 m³, depending on the bucket type.
What is the maximum digging depth?+
Around 8.5–9.0 meters.
What are the common applications?+
Large construction, infrastructure, mining support, quarry work and material handling.
Is the EC480D fuel-efficient?+
Yes, engineered for high performance with optimized fuel efficiency.
What attachments are compatible?+
Buckets, hydraulic breakers, grapples and other heavy-duty tools.
Does it come with warranty and service support?+
Yes, it includes manufacturer warranty and dealer service support.
Is the EC480D suitable for tough terrain and heavy lifting?+
Yes, designed for stable, powerful performance in challenging conditions.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing, availability and a tailored quote.
