Volvo EC300D

EXCAVATOR
ENQUIRE NOW CALL US
OVERVIEW

Volvo’s EC300D crawler excavator is built to increase production, reduce fuel consumption and reach new levels of efficiency. With proven, advanced technology the EC300D offers customers a 7% – 10% increase in fuel efficiency compared to the previous model.

KEY BENEFITS
  • ✓170 kW (228 hp) D7 engine for heavy-duty performance
  • ✓High breakout force for tough material digging
  • ✓Optimal hydraulic flow for fast cycle times
  • ✓Active Care telematics for fleet management
  • ✓Proven on highways, tunnels and dam projects
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC300D Full Specs

TECHNICAL SPECIFICATIONS FOR EC300D
METRICIMPERIAL
Operating weight30,400 - 32,320 kg67,020 - 71,253 lbs
Gross power170 kW228 hp
Bucket capacity1.6 - 2.5 m³2.1 - 3.27 yd³
Lifting capacity, along undercarriage16,120 kg35,538 lbs
...at reach / height4,5 / 1,5 m20 / 5 ft
Max. digging reach10,430 mm34' 3" ft in
Max. digging depth7,050 mm23' 2" ft in
Breakout force, SAE J1179 (Normal)168 kN37,767 lbf
Tear out force, SAE J1179 (Normal)144 kN32,372 lbf
Overall width3,190 mm10′ 6″ ft in
Tail swing radius3,120 mm10′ 3″ ft in
...at engine speed1,800 rpm1,800 rpm
Breakout force, SAE J1179 (Boost)182 kN40,915 lbf
Tear out force, SAE J1179 (Boost)157 kN

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC300D Apart

Volvo EC300D — Productivity

Customer solutions

Volvo provides the right solutions throughout the entire life cycle of your machine to lower total cost of ownership.

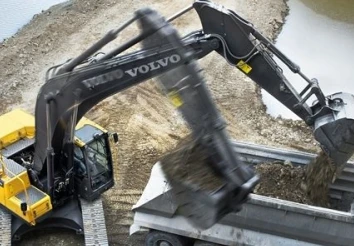

Volvo EC300D — Efficiency

Increased power

Benefit from increased power, digging force and faster cycle times for more productivity.

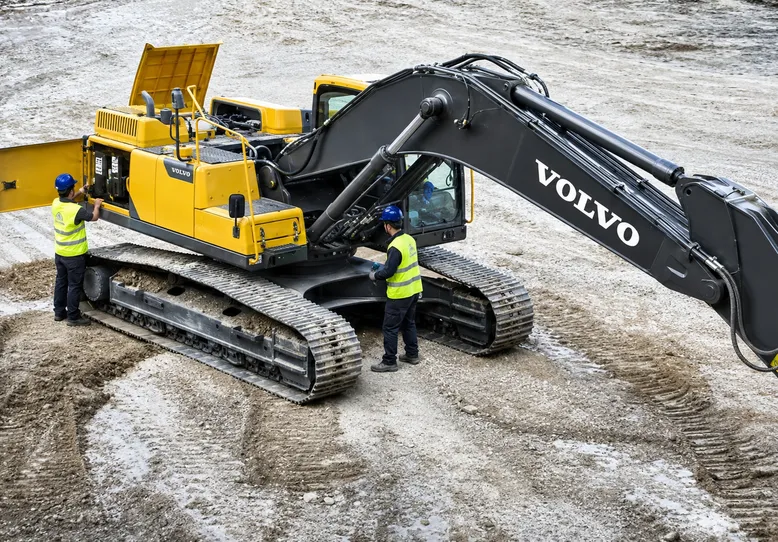

Volvo EC300D — Comfort

Service access

Large doors and engine hood provide easy service access. Centralized filters and greasing points allow regular checks to be done faster.

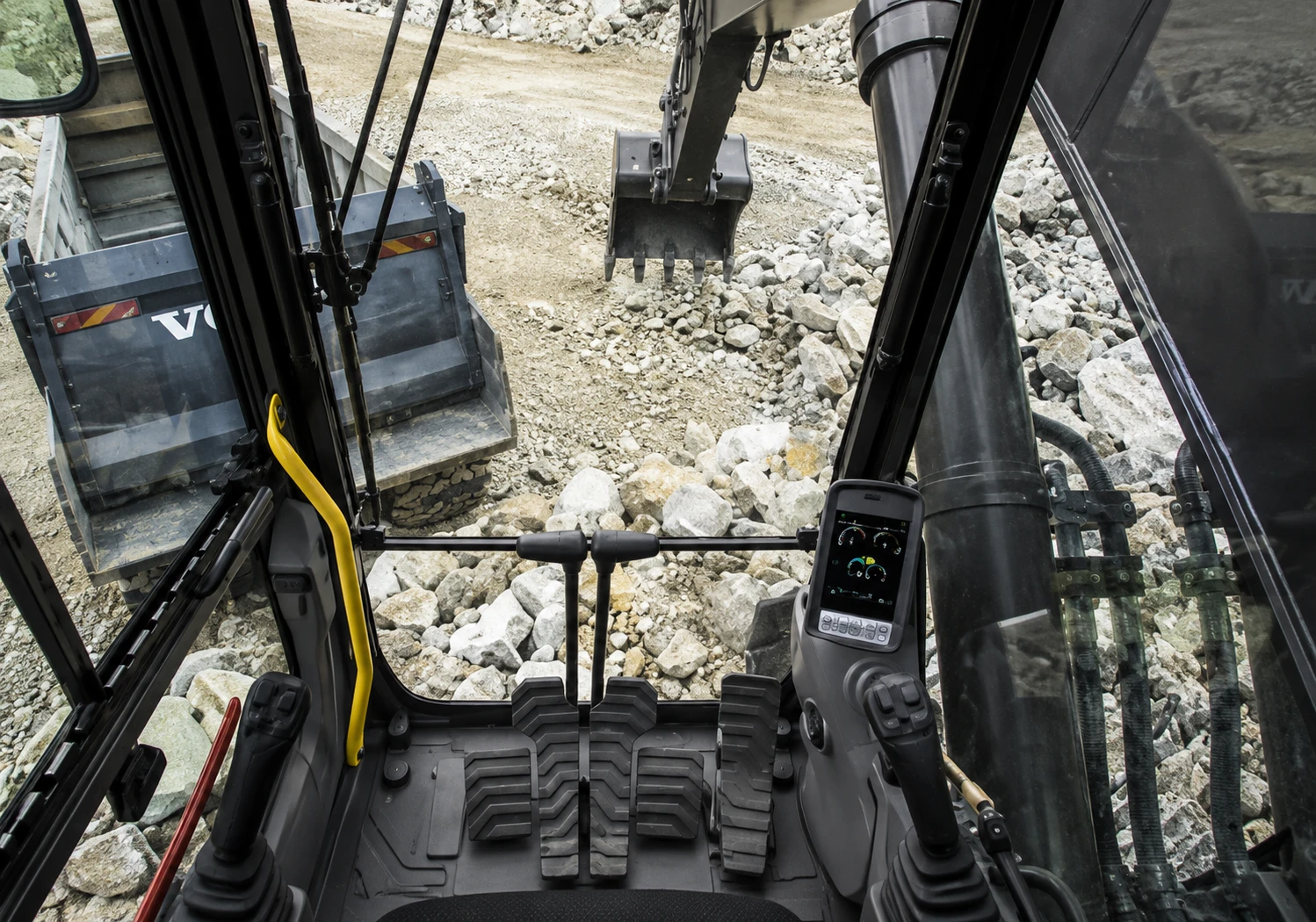

Volvo EC300D — Uptime

Cab design

All-around visibility, safety, comfort and easy to access controls are at the center of Volvo's operator environment.

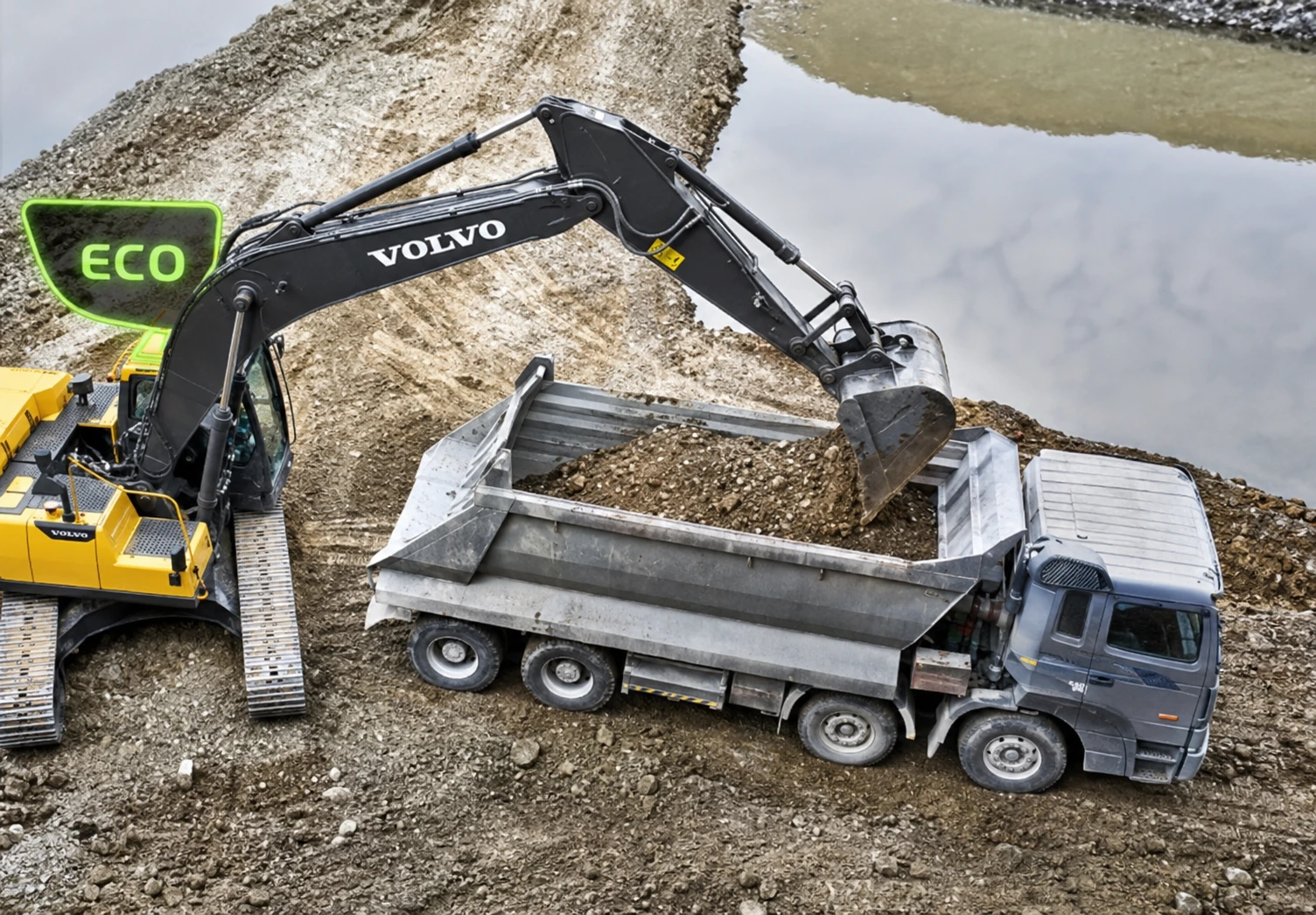

Volvo EC300D — Feature

ECO mode

Volvo's unique ECO mode contributes to up to 5% of the machine's total improved fuel efficiency without any loss of performance.

Where It Works

Designed for Every Application

The EC300D delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

FAQs

Frequently Asked Questions

What is the Volvo EC300D?+
A 30-tonne class crawler excavator designed for heavy construction and earthmoving jobs.
What is the operating weight?+
Approximately 30,000 kg (varies by configuration).
What is the bucket capacity?+
Typically 1.2–1.8 m³, depending on the bucket used.
What is the maximum digging depth?+
Around 7.2–7.5 meters.
What are the common applications?+
Earthmoving, infrastructure projects, quarry work, utilities, and large construction sites.
Is the EC300D fuel-efficient?+
Yes, it’s designed for efficient performance and lower fuel use.
What attachments can be fitted?+
Buckets, breakers, grapples and other job-specific tools.
Does it come with warranty support?+
Yes, includes manufacturer warranty and dealer service support.
Is it suitable for tough terrain and heavy lifting?+
Yes, built for durable performance and stable operation.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing, availability and a tailored quote.
