Volvo EC220

EXCAVATOR
ENQUIRE NOW
Contact us
OVERVIEW

Get the most out of your excavator in any application. The EC220 crawler excavator is equipped with a range of features to ensure a superior performance, shift after shift. Designed with Volvo’s extensive experience and expertise, this robust machine delivers ultimate productivity and efficient operation in a wide variety of tasks.

KEY BENEFITS
  • ✓India-spec configuration for local site conditions
  • ✓Robust Volvo D5E engine with proven reliability
  • ✓Advanced hydraulic system for high productivity
  • ✓Heavy-duty undercarriage for Indian terrain
  • ✓Volvo Care Service network across Maharashtra
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications FAQs
Technical Specifications

Volvo EC220 Full Specs

TECHNICAL SPECIFICATIONS FOR EC220
METRICIMPERIAL
Operating weight22,338 kg49,247 lbs
Gross power123 kW167 hp
Bucket capacity1 - 1.22 m³1.3 - 1.6 yd³
Lifting capacity, along undercarriage9,430 kg20,789 lbs
...at reach / height4,5 / 1,5 m13 / 5 ft ft
Max. digging reach9,410 mm30' 2" ft in
Max. digging depth6,360 mm20' 10" ft in
Breakout force, SAE J1179 (Normal)120 kN26,977 lbf
Breakout force, SAE J1179 (Boost)127 kN28,550 lbf
Tear out force, SAE J1179 (Normal)111 kN24,954 lbf
Tear out force, SAE J1179 (Boost)118 kN26,527 lbf
Overall width2,800 mm9'2" ft in
Tail swing radius2,850 mm9'4" ft in
...at engine speed2,000 rpm2,000 rpm

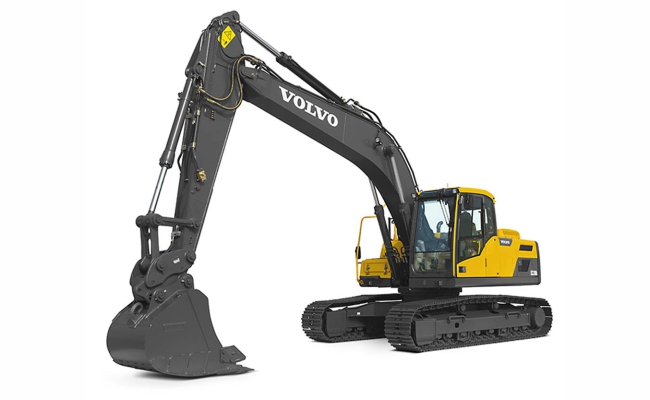

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the EC220 Apart

Volvo EC220 — Productivity

GET MORE DONE

Volvo provides the right solutions throughout the entire life cycle of your machine to lower total cost of ownership.

Volvo EC220 — Efficiency

OUTSTANDING FUEL EFFICIENCY

Benefit from increased power, digging force and faster cycle times for more productivity.

Volvo EC220 — Comfort

A VERSATILE MACHINE

Large doors and engine hood provide easy service access. Centralized filters and greasing points allow regular checks to be done faster.

Volvo EC220 — Uptime

CUSTOMER SUPPORT AGREEMENTS

All-around visibility, safety, comfort and easy to access controls are at the center of Volvo’s operator environment.

Where It Works

Designed for Every Application

The EC220 delivers reliable performance across a wide range of industries and applications in India.

🛣️
Road Construction

Embankment, trenching, cut & fill for national highways.

🏙️
Urban Infrastructure

Utilities, drainage, metro, and municipal projects.

⛏️
Quarry & Mining

Aggregates handling and rock-face cleanup.

💧
Irrigation

Canal digging, desilting, and water management.

⚓
Ports

Bulk material handling and port infrastructure.

🗑️
Waste Management

Land reclamation and solid waste handling.

🏗️
General Construction

Foundation digging, site preparation, leveling.

📦
Bulk Material

Loading, unloading, stockpiling of aggregates.

Attachments

KEEP YOUR VOLVO A VOLVO!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

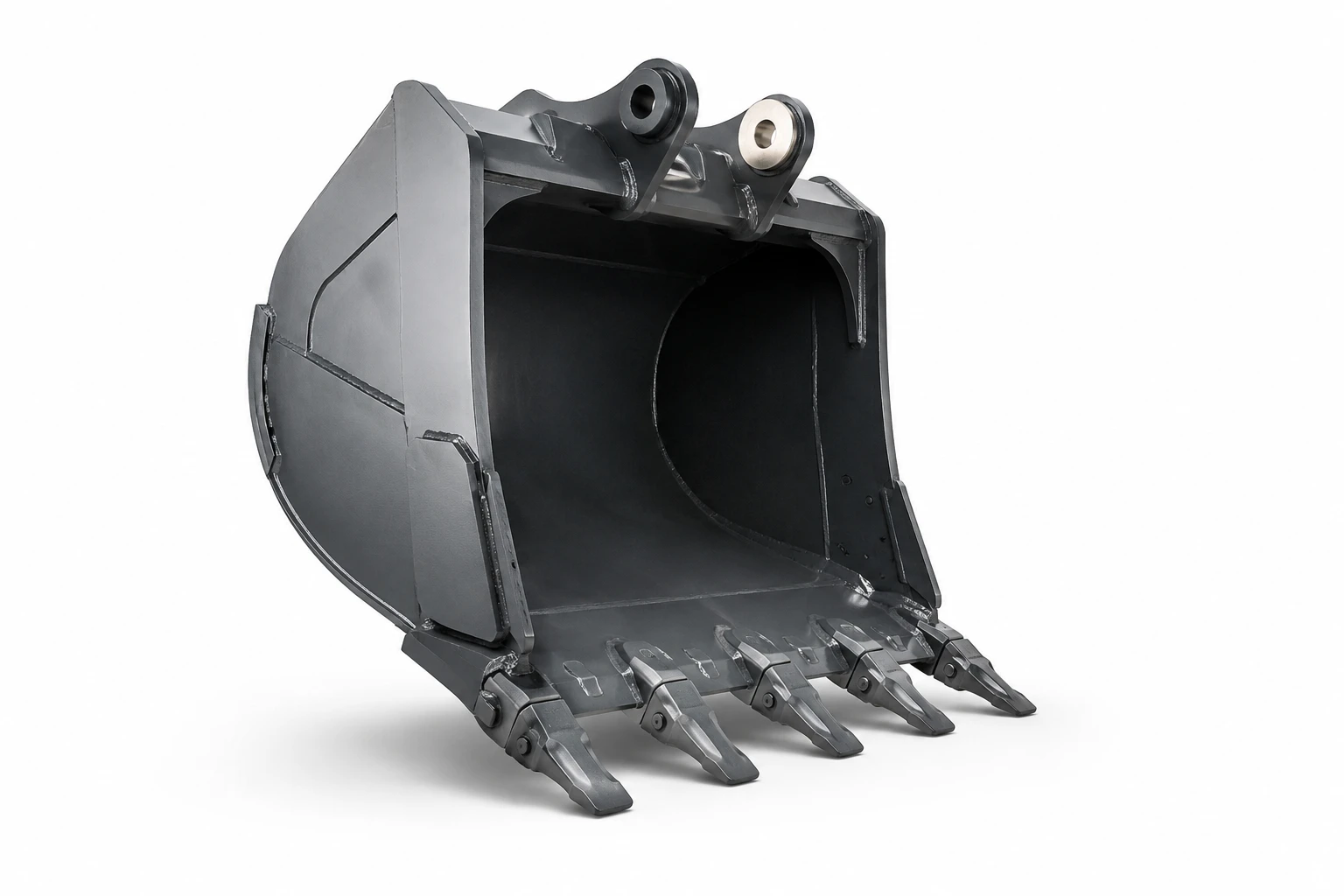

BUCKETS (4)

BUCKETS (4)

HYDRAULIC BREAKERS (1)

HYDRAULIC BREAKERS (1)

FAQs

Frequently Asked Questions

What is the Volvo EC220?+
A 22-tonne medium crawler excavator built for heavy construction and earthmoving work.
What is the operating weight?+
Approximately 22,338 kg.
What is the bucket capacity?+
About 1.0–1.22 m³.
What is the maximum digging depth?+
Around 6.36 meters.
What is the maximum digging reach?+
About 9.41–9.93 meters.
What are its common applications?+
Earthmoving, road construction, utilities, quarry operations, and general construction.
Is the EC220 fuel-efficient?+
Yes, it is designed for high productivity with reduced fuel consumption.
What attachments can be used?+
Buckets, hydraulic breakers, grapples, and other compatible tools.
Does it come with warranty support?+
Yes, with manufacturer warranty and dealer service support.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing and availability.
