Volvo A35

ARTICULATED HAULER
ENQUIRE NOW CALL US
OVERVIEW

Tackle tough jobs in the heavy-duty A35 articulated hauler from Volvo, equipped with innovative features supporting maximum productivity and machine availability. Experience superior power and reliability, helping to make hauling more efficient – and more profitable.

KEY BENEFITS
  • 34.5-tonne class for high-productivity earthmoving
  • D13F engine — proven fuel efficiency at this payload
  • All-wheel drive with Automatic Diff-lock
  • Retarder for safe braking on steep descents
  • Used in quarries, mines and large dam construction
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Features Applications
Technical Specifications

Volvo A35 Full Specs

TECHNICAL SPECIFICATIONS FOR A35
METRICIMPERIAL
Payload capacity34,500 kg38 sh tn
Body volume, SAE 2:1 heap21.3 m³28.4 yd³
Net weight29,800 kg65,698 lbs
Gross weight64,270 kg1,41,691 lbs
EngineVolvo D13FVolvo D13F
Max engine gross power336 kW451 hp
...at engine speed1,900 rpm1,900 rpm
Max SAE J1349 gross torque2,407 Nm1,775 lbf ft
...at engine speed1,000 rpm1,000 rpm
Max speed57 km/h35.4 mph

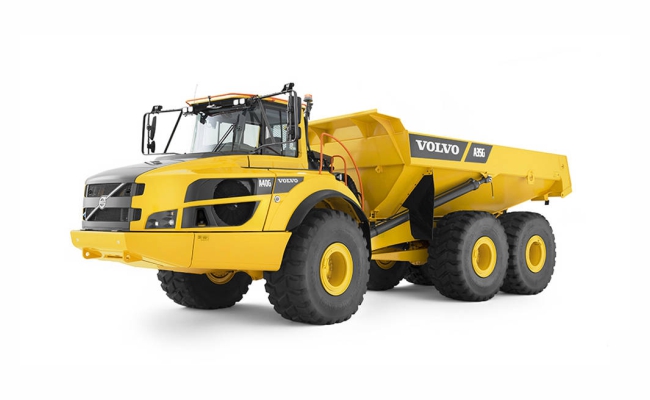

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the A35 Apart

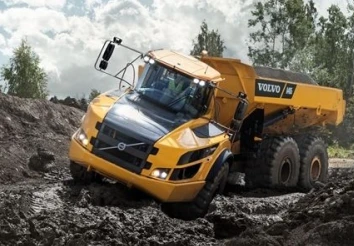

Volvo A35 — Productivity

KEEP ON MOVING

Increase uptime and reduce maintenance costs in the A35, featuring extended service intervals, removed maintenance requirements and straightforward access to service points.

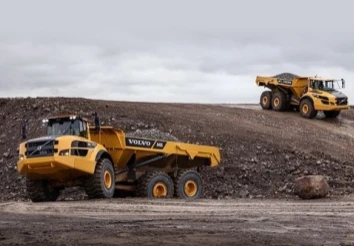

Volvo A35 — Efficiency

LOW COST PER TONNE

Boost your profits in the Volvo A35, delivering high productivity at the lowest cost per tonne.

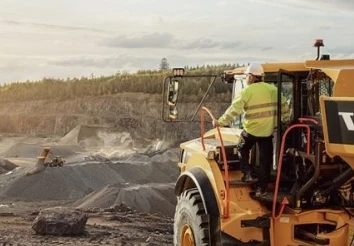

Volvo A35 — Comfort

COMFORTABLY PRODUCTIVE

The Volvo A35 is the operator’s number one choice. Its superior comfort, ease of operation and safety keep operators alert and performing their best.

Where It Works

Designed for Every Application

The A35 delivers reliable performance across a wide range of industries and applications in India.

⛏️
Mining

Ore and waste rock transport from pit to dump.

🛣️
Road Construction

Fill material transport for embankment building.

⛰️
Quarry Operations

Aggregates hauling from face to crusher.

💧
Dam Construction

Earth, rock, and fill material transport.

🏗️
Earthmoving

Large-scale cut & fill and bulk earthworks.

🌲
Forestry

Log and timber transport on rough terrain.

🏭
Industrial

Bulk material transport in industrial facilities.

🌍
Infrastructure

Material transport for major civil infrastructure.
