Terex FM 200 DF

WASHING SYSTEM
ENQUIRE NOW CALL US
OVERVIEW

The Terex FM 200 DF is a static sand recovery unit built on a single chassis, and the larger of the two Direct Feed machines. It washes a dry, pre-screened feed to recover saleable sand and strip out silt, slimes and clay, and suits dust washing where very little oversize is present in the feed.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex FM 200 DF Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Working Length7.3m
Working Width (including walkway)4.3m
Working Height7.4m
Feed Height4m
Product Discharge Height1.8m
Waste Water Discharge Height0.6m
Total Weight (empty)15,000kg
Total Weight (working)23,000kg
PLANT AND CAPACITY
DESCRIPTIONSPECIFICATION
ThroughputApprox 80 to 120 tph
CycloneOne Terex 450mm hydrocyclone
Cut PointApproximately 75 micron (200 mesh)
Pump Motor22kW, IP55 enclosure
Pump Capacity190m3/hr, up to 240m3/hr
Dewatering Screen4.3m x 1.8m split dewatering screen
Screen Vibratory Motors6.2kW, 2 off at 960RPM
Screen Aperture0.5mm dewatering side, up to 8mm rinsing side
Residual Water Content12 percent
TransportBreaks down into one 40ft container

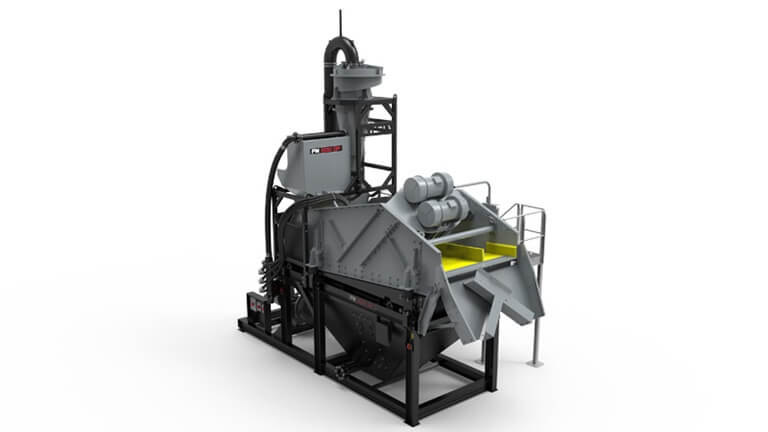

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
