Terex FM 120 DF

WASHING SYSTEM
ENQUIRE NOW CALL US
OVERVIEW

The Terex FM 120 DF is a static sand recovery unit built on a single chassis. It takes a dry, pre-screened feed and washes it, recovering saleable sand and removing the silt, slimes and clay that would otherwise be lost to the settling pond. DF stands for Direct Feed.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex FM 120 DF Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Working Length6.9m
Working Width (including walkway)4.6m
Working Height6.6m
Feed Height4m
Product Discharge Height1m
Waste Water Discharge Height0.6m
Total Weight (empty)12,000kg
Total Weight (working)29,000kg
PLANT AND CAPACITY
DESCRIPTIONSPECIFICATION
ThroughputApprox 70 to 80 tph
CycloneOne Terex 450mm hydrocyclone
Cut PointApproximately 75 micron (200 mesh)
Pump Motor22kW, IP55 enclosure
Pump Capacity190m3/hr, up to 240m3/hr
Dewatering Screen3.6m x 1.5m split dewatering screen
Screen Vibratory Motors4.5kW, 2 off at 960RPM
Screen Aperture0.5mm dewatering side, up to 8mm rinsing side
Residual Water Content12 percent
TransportShips in one 40ft container

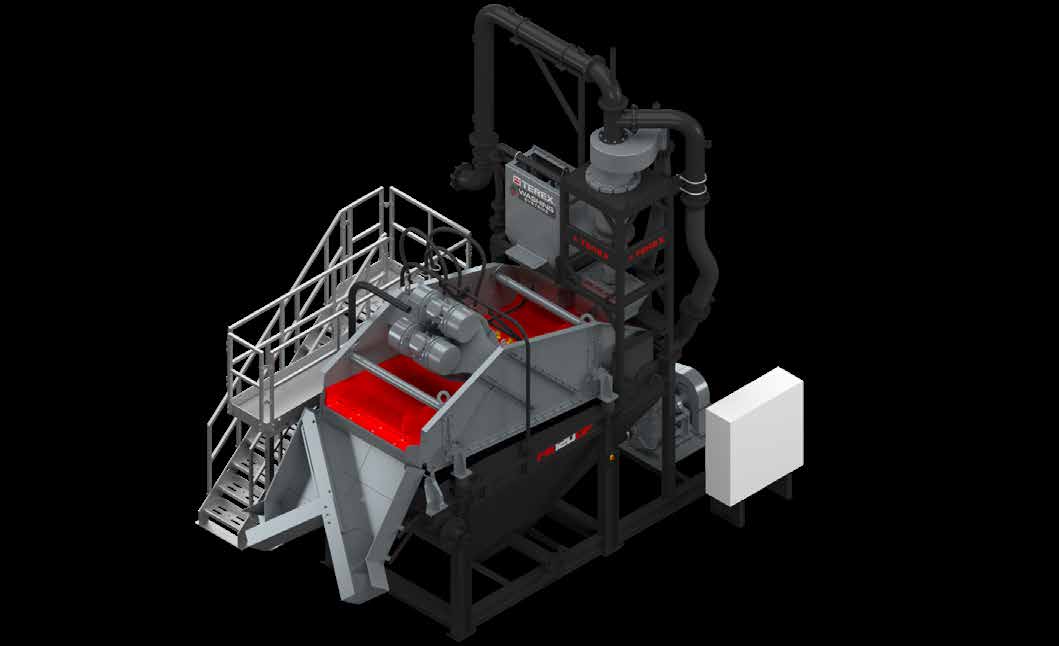

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

FM-120-DF
