Terex Falcon 1630

SCREENER
ENQUIRE NOW CALL US
OVERVIEW

The Terex Falcon 1630 is a tracked inclined screen. An inclined screen uses an angled vibrating deck to grade crushed material into several sized products in a single pass.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex Falcon 1630 Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Hopper Capacity7.5m3
Hopper and Belt Feeder Length4.85m
Feeder Belt Width1050mm
Tipping Grid Length4.85m as standard
Tipping Grid TypeAdjustable angle with integral loading and wing plates
Top and Middle Deck Screen4.8m x 1.53m
Bottom Deck Screen4.3m x 1.53m
Powerunit (Tier 3)CAT C4.4 83kW
Powerunit (Stage V)CAT C3.6 82kW
Output Potential300 tph
TRANSPORT DIMENSIONS
DESCRIPTIONSPECIFICATION
Length16 m 76 cm
Width2 m 56 cm
Height3 m 43 cm

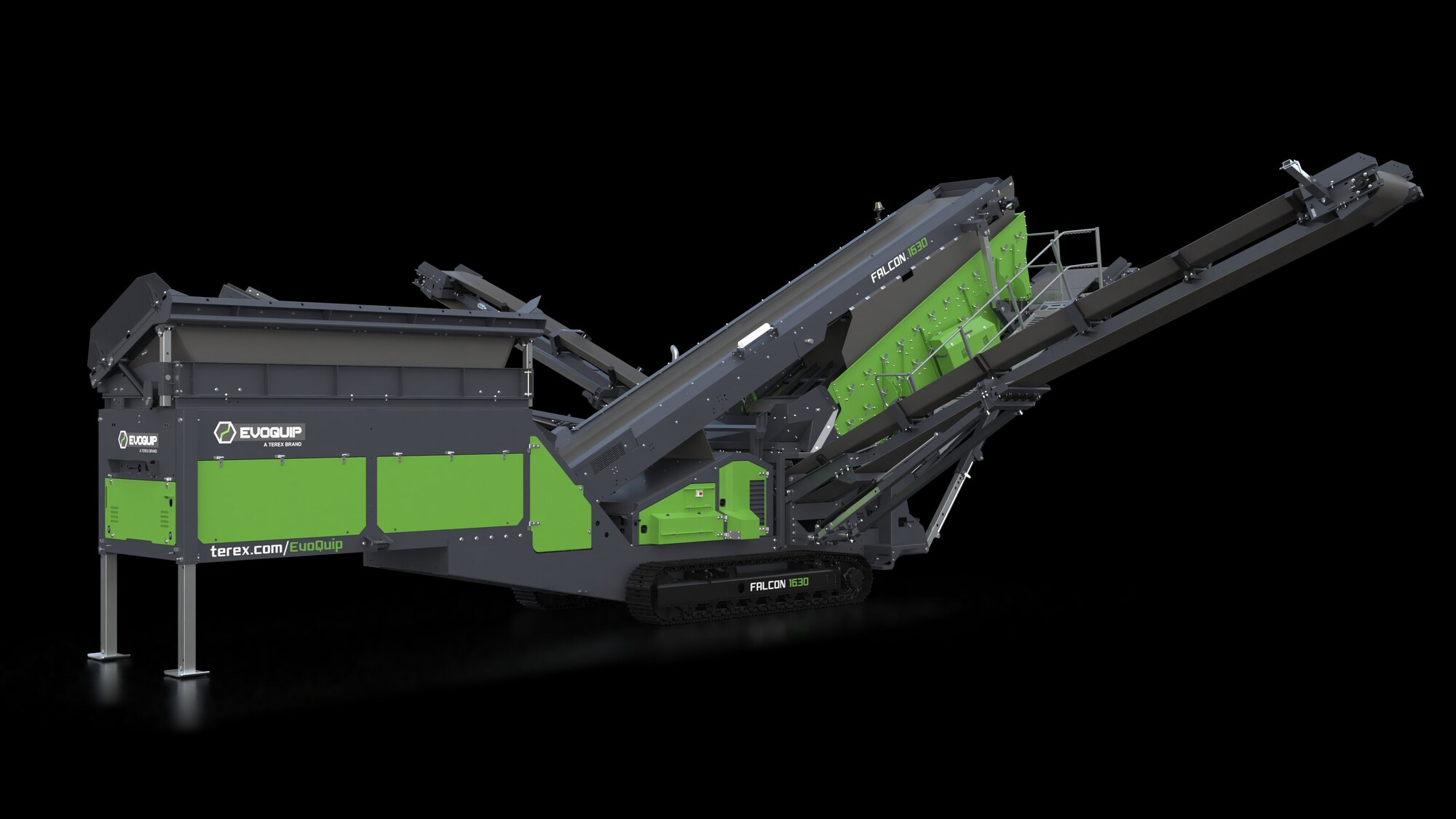

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
