Terex Colt 1600 | Team Engineers
Authorized Dealer
Terex
Terex

Terex Colt 1600

SCREENER
ENQUIRE NOW CALL US
OVERVIEW

The Terex Colt 1600 is a tracked scalping screen. A scalping screen works ahead of a crusher, separating oversize material and taking out fines so that only suitable feed reaches the crushing stage.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex Colt 1600 Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Hopper Capacity7m3
FeederHeavy Duty Apron Feeder
Feeder Width2600mm
Double Deck Screen4.8m x 1.5m
Powerunit (Tier 3)CAT C4.4 - 83kW @ 1800rpm
Powerunit (Tier 4F/Stage V)Deutz TCD 3.6L4 - 92kW @ 1800rpm
Output PotentialUp to 600 tph
Collection Conveyor1200mm Wide
Fines Conveyor900mm Wide with 4.0m discharge
Midgrade Conveyor800mm Wide with 3.4m discharge
Oversize Conveyor1200mm Wide with 3.6m discharge
TRANSPORT DIMENSIONS
DESCRIPTIONSPECIFICATION
Length14.95m
Width3.0m
Height3.4m
Weight31,000kgs Single shaft std configuration
Weight (triple shaft)34,000kgs triple shaft std configuration

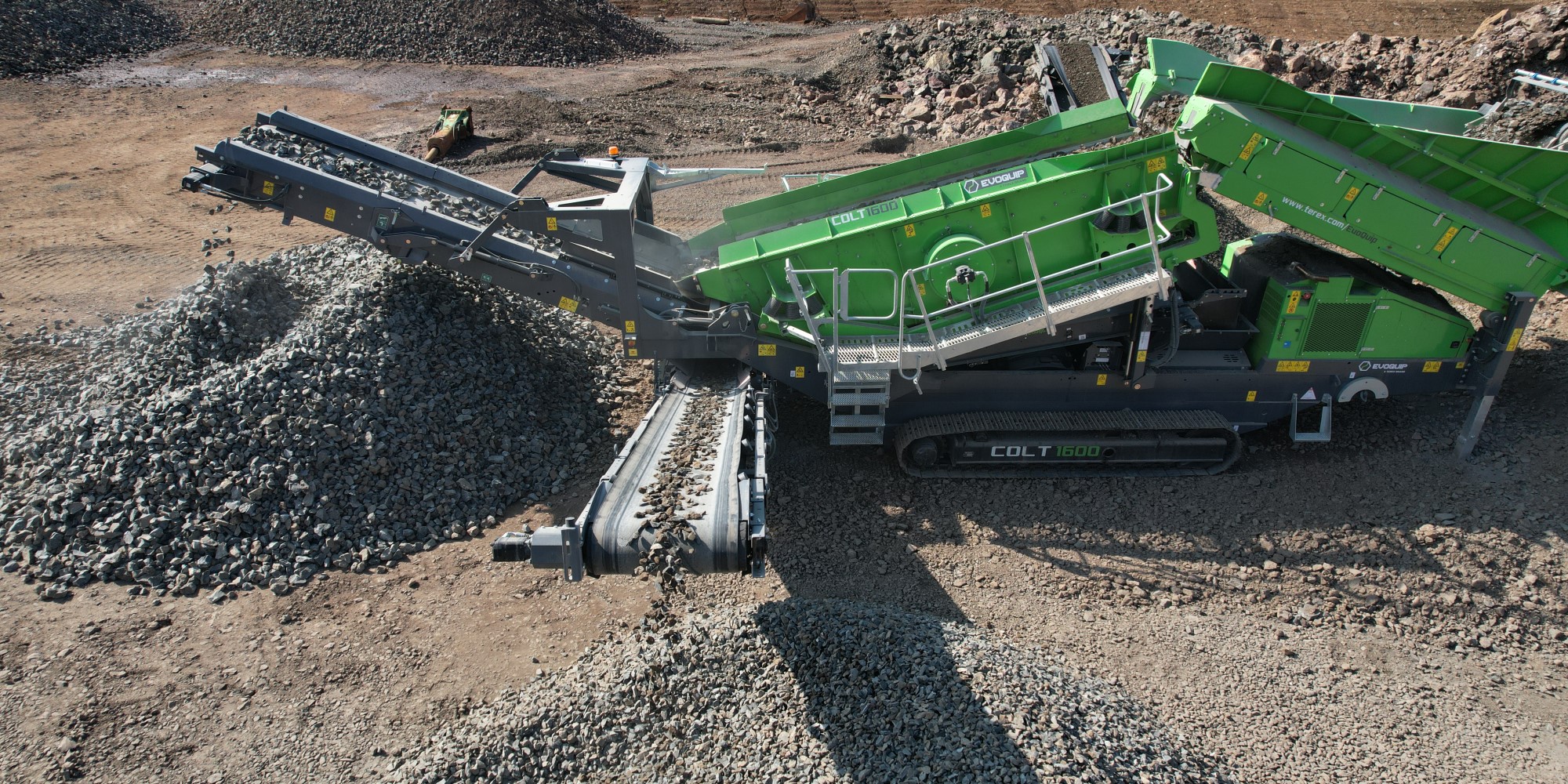

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
