Terex Cobra 290R

CRUSHER
ENQUIRE NOW CALL US
OVERVIEW

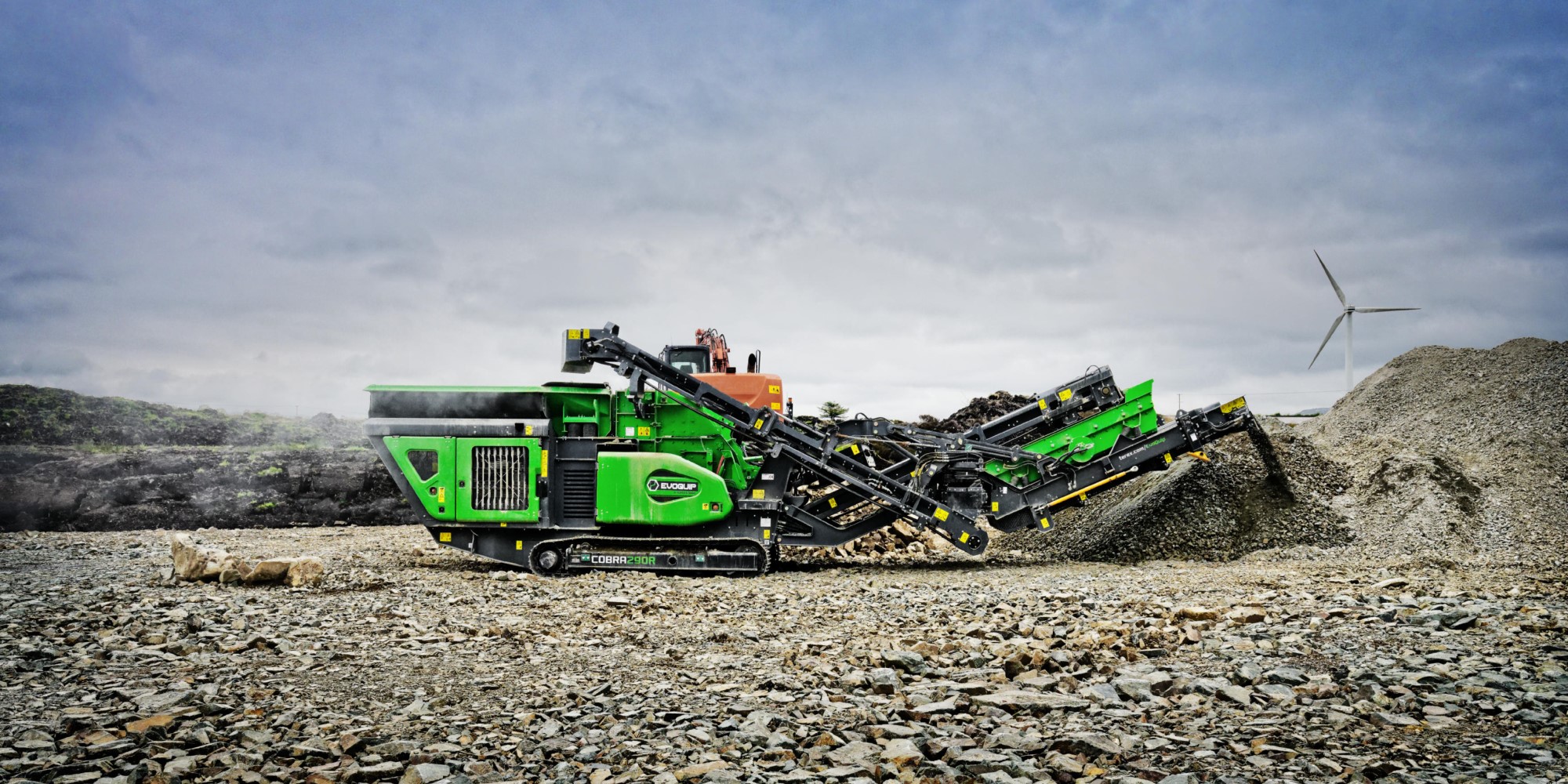

The Terex Cobra 290R is a tracked impact crusher. Impact crushers break material by striking it with rotating blow bars rather than compressing it, which suits softer stone, asphalt and recycled concrete.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex Cobra 290R Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Hopper Capacity3.3m3
Crusher Inlet1030mm x 790mm
Diameter Rotor1000mm x 1034mm
Max OSS150mm upper, 75mm lower
Min CSS50mm upper, 20mm lower
Screen2.74m x 1.5m single deck screen
Powerunit (Tier 3 Equivalent)Volvo D8 235 kW
Powerunit (Tier 4 Final)Volvo D8 235kW
Powerunit (Stage V)Volvo D8 235kW
Output PotentialUp to 290tph
Product Conveyor1000mm Wide
Side Conveyor (option)500mm Wide
Side Conveyor Discharge Height (option)2.48m
Transfer Conveyor500mm Wide
Oversize Conveyor500mm Wide with Recirc & Stockpile
Fines Conveyor1200mm Wide with 3m discharge
TRANSPORT DIMENSIONS
DESCRIPTIONSPECIFICATION
Length14.76m
Width2.9m
Height3.16m
Weight with Magnet (Tier 3)34,200kgs
Weight with Magnet (Tier 4F)34,200kgs
Weight with Magnet (Stage V)35,700kgs

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
