Terex Bison 280

CRUSHER
ENQUIRE NOW CALL US
OVERVIEW

The Terex Bison 280 is a compact tracked jaw crusher for primary crushing. A jaw crusher squeezes rock, concrete or demolition rubble between a fixed and a moving plate to break it down before any later crushing stage.

Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Terex Bison 280 Full Specs

TECHNICAL SPECIFICATION
DESCRIPTIONSPECIFICATION
Hopper Capacity3.6m3
Nominal Spacing Grizzly50mm
Jaw Inlet900mm x 600mm
Min CSS40mm Recycle / 50mm in natural rock
Max CSS130mm
Powerunit (Stage IIIA)John Deere 4045 126kW
Powerunit (Tier 4 Final)Caterpillar C4.4 129kW
Powerunit (Stage V)Caterpillar C4.4 129 kW
Output PotentialUp to 200 tph
Product Conveyor800mm Wide
Product Conveyor Discharge Height2.9m
TRANSPORT DIMENSIONS
DESCRIPTIONSPECIFICATION
Length12.4m
Width2.4m
Height3.2m
Weight (Tier 3)27,700kgs
Weight (Tier 4F)27,500kgs
Weight (Stage V)27,100kgs

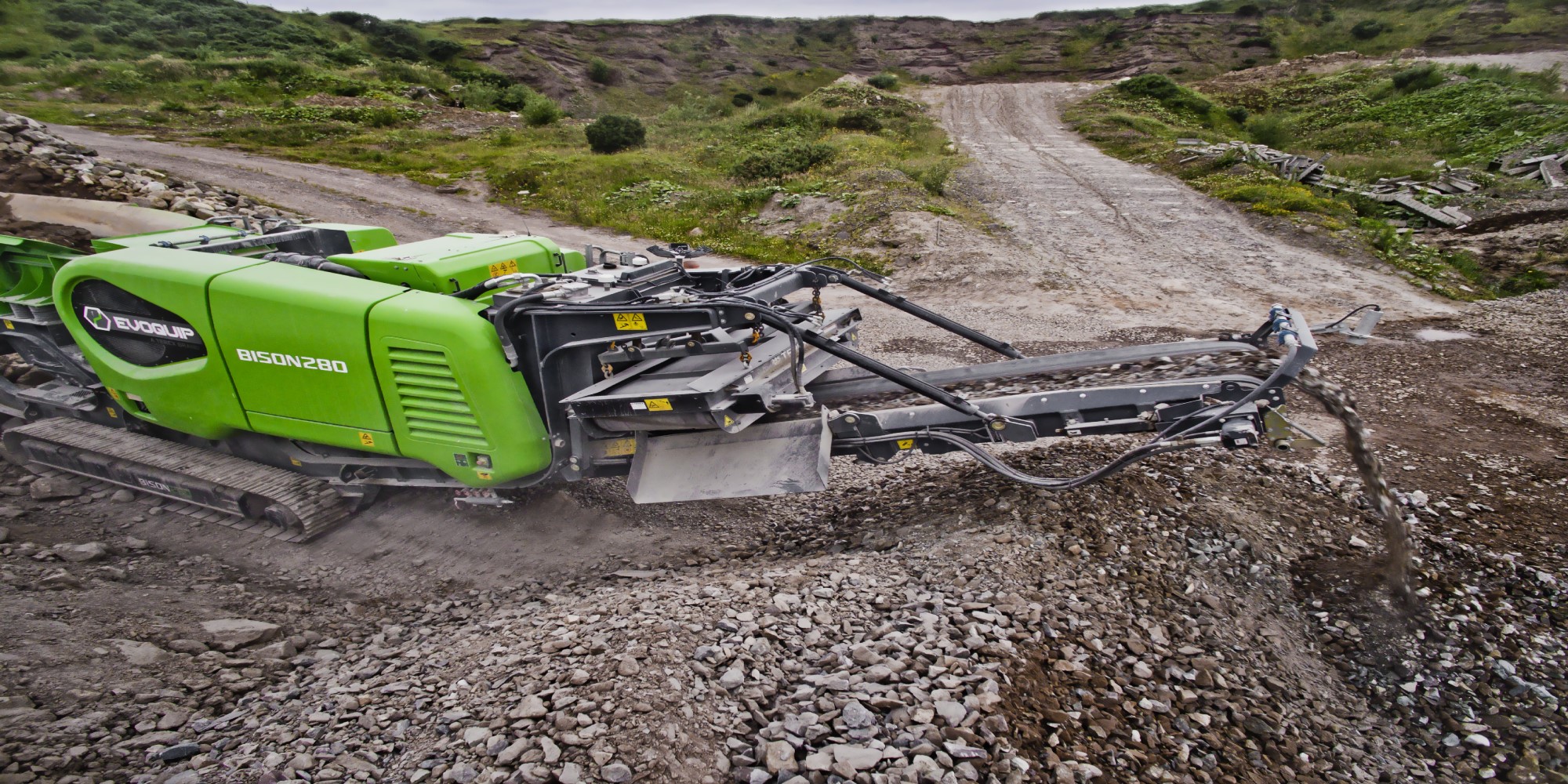

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
