MEDIUM CRAWLER EXCAVATORS
EC200D
- 19,800 - 20,500 kg
- 165 hp
- 0.92 m³ - 1.1
Thanks to the fuel-efficient Volvo D5 engine, advanced hydraulic system and improved controllability, you can count on the EC200D to deliver a smooth.
THE EC200D CRAWLER EXCAVATOR DELIVERS SIMPLE AND EFFICIENT PERFORMANCE, SO YOU CAN LIFT AND LOAD FOR LESS.
Thanks to the fuel-efficient Volvo D5 engine, advanced hydraulic system and improved controllability, you can count on the EC200D to deliver a smooth and efficient operation – all from the comfort of the industry-leading Volvo cab.
TECHNICAL SPECIFICATIONS FOR EC200D
Download the brochure or contact us.
| METRIC | IMPERIAL | |
|---|---|---|
| Operating weight | 19,800 - 20,500 kg | 43,651 - 44,754 lbs |
| Gross power | 123 kW | 165 hp |
| ...at engine speed | 2,000 rpm | 2,000 rpm |
| Bucket capacity | 0.92 m³ - 1.1 | 1.05 yd³ |
| Lifting capacity, along undercarriage | 6,030 kg | 13,294 lbs |
| ...at reach / height | 6 / 1.5 m | 20 / 5 ft |
| Max. digging reach | 9,840 mm | 32′ 3″ ft in |
| Max. digging depth | 6,680 mm | 21′ 11″ ft in |
| Breakout force, SAE J1179 (Normal) | 116 kN | 26,078 lbf |
| Breakout force, SAE J1179 (Boost) | 90 kN | 20,232 lbf |
| Overall width | 2,800 mm | 9′ 2″ ft in |
| Tail swing radius | 2,860 mm | 9′ 5″ ft in |

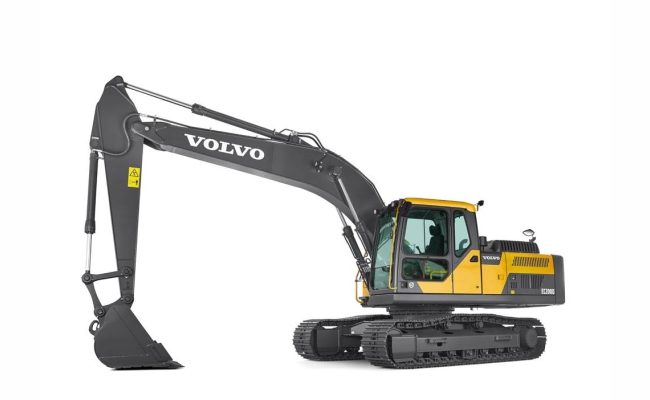

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
FEATURES & BENEFITS

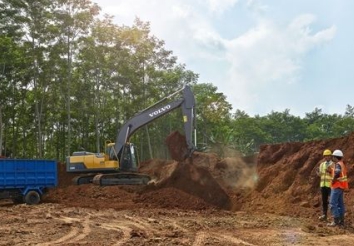

DO MORE WITH LESS FUEL
COMPLETE SOLUTIONS

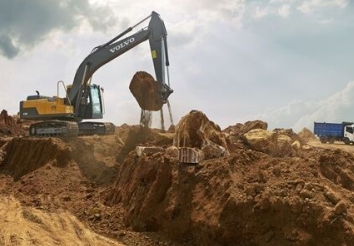

THE RIGHT MACHINE FOR THE JOB
KEEP YOUR VOLVO A VOLVO!
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
BUCKETS (4)
