MEDIUM CRAWLER EXCAVATORS

EC140D

  • 12,920 - 15,870 kg
  • 77.4 kW
  • 0.25 - 0.66 m³

Take command in the durably designed EC140D, featuring the latest fuel-efficient Volvo engine and enhanced hydraulics to deliver exceptionally high…

Contact us

Overview

Specifications

Features

Attachments

COMBINING HIGH FUEL EFFICIENCY, UPTIME AND PRODUCTIVITY TO BECOME THE ULTIMATE EARNING MACHINE

Take command in the durably designed EC140D, featuring the latest fuel-efficient Volvo engine and enhanced hydraulics to deliver exceptionally high efficiency, rapid cycles and low fuel consumption. Thanks to ultimate machine availability, easy serviceability and performance-enhancing features, the robust excavator helps you do more and increase your profits.

TECHNICAL SPECIFICATIONS FOR EC140D

Here are the key specifications for this product model. Want more details?
Download the brochure or contact us.
METRIC IMPERIAL
Operating weight12,920 - 15,870 kg 28,480 - 34,990 lbs
Gross power77.4 kW104 hp
...at engine speed2,200 rpm 2,200 rpm
Bucket capacity0.25 - 0.66 m³ 0.33 - 0.86 yd³
Lifting capacity, along undercarriage3,500 kg 7,720 lbs
...at reach / height 6 / 1.5 m20 / 5 ft
Max. digging reach 8,330 mm 27′ 4″ ft in
Max. digging depth5,530 mm 18′ 2″ ft in
Breakout force, SAE J1179 (Normal) 82.2 kN 18,480 lbf
Breakout force, SAE J1179 (Boost)87.2 kN 19,600 lbf
Tear out force, SAE J1179 (Normal) 61.8 kN 13,890 lbf
Tear out force, SAE J1179 (Boost)65.5 kN 14,730 lbf
Overall width2,590 mm8′ 6″ ft in
Tail swing radius 2,200 mm 7′ 3″ ft in

Based on machine configuration: 4.6m (15’1″) Boom, 2.5m (8’2″) arm

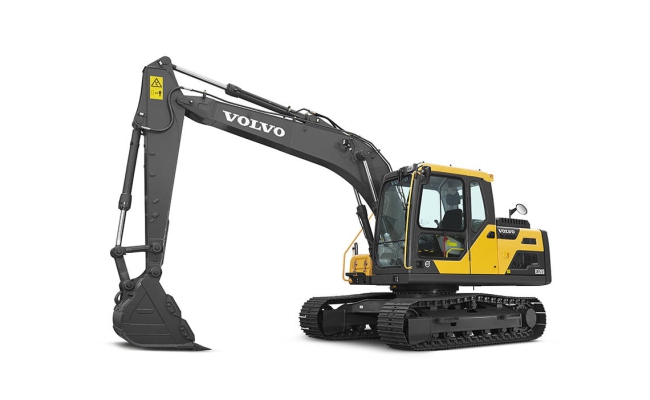

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

FEATURES & BENEFITS

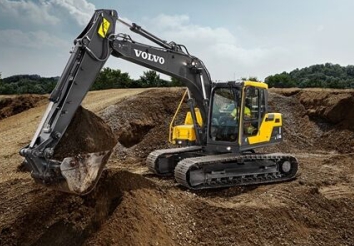

OUTSTANDING FUEL EFFICIENCY

Reduce fuel consumption, increase profitability and deliver higher productivity.

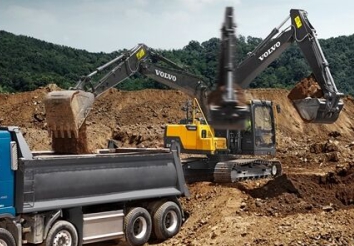

SUPERIOR MACHINE PERFORMANCE

This excavator delivers a strong, versatile performance in a wide range of applications.

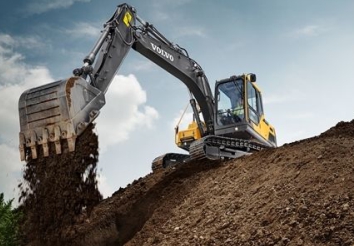

A VERSATILE MACHINE

Access more applications and efficiently perform a variety of tasks with Volvo’s extensive attachment range.

CUSTOMER SUPPORT AGREEMENTS

Control your service costs with Volvo’s range of Customer Support Agreements, offering a number of services to increase uptime.

KEEP YOUR VOLVO A VOLVO!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

BUCKETS (4)

HYDRAULIC BREAKERS (1)

QUICK COUPLERS (1)

TILT ROTATORS (1)
