ASPHALT COMPACTORS

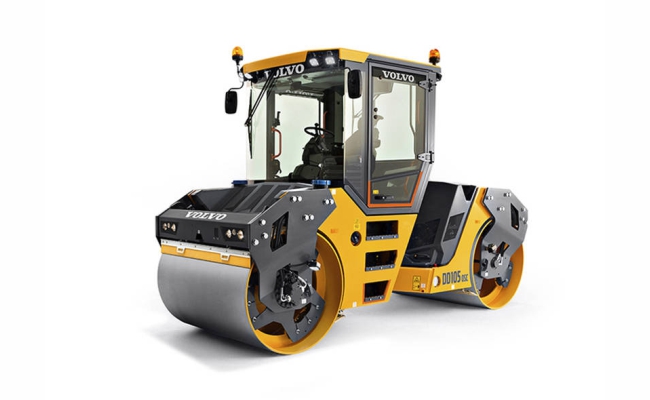

DD105 OSC
- 9,926 kg
- 85 kW
- 1680 mm
Complete with new oscillation technology, the DD105 OSC has the ability to effectively compact in delicate areas, such as on bridges, over pipes and.
COMPACT YOUR COSTS
Complete with new oscillation technology, the DD105 OSC has the ability to effectively compact in delicate areas, such as on bridges, over pipes and close to residential areas.
TECHNICAL SPECIFICATIONS FOR DD105 OSC
Here are the key specifications for this product model. Want more details?
Download the brochure or contact us.
Download the brochure or contact us.
| METRIC | IMPERIAL | |
|---|---|---|
| Operating weight (with ROPS) | 9,926 kg | 21,883 lbs |
| Drum or rolling width | 1680 mm | 66.1 in |
| Rated engine power | 85 kW | 114 hp |
| Vibration frequency | 39 hz | 2,340 v/min |
| Amplitude | 0.72 mm | 0.0283 in |
| Overall length | 4,650 mm | 15′ 3.1″ ft in |
| Overall width | 1,838 mm | 6′ 0.4″ ft in |
| Overall height | 2,999 mm | 118.1 in |
Amplitude is tangential
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
- Download the DD105 OSC brochure, with all the details and specifications. (PDF, 2.2MB)
FEATURES & BENEFITS

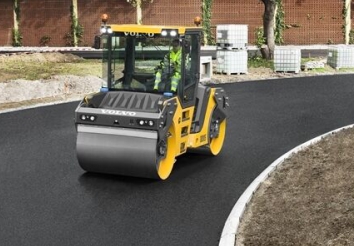

ADAPTIVE POWER
Engine output is adapted according to jobsite requirements for maximum fuel efficiency.

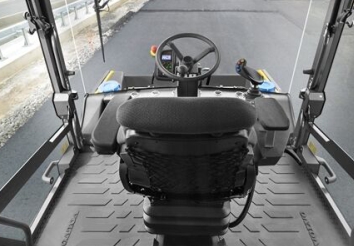

PILLAR-LESS VIEW
Pillar-less forward view allows excellent visibility to the drum edges, water spraying system and worksite.

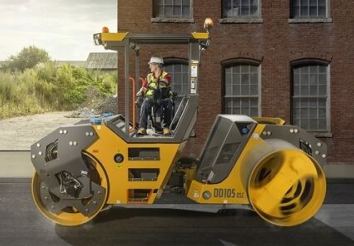

MEET JOBSITE REQUIREMENTS

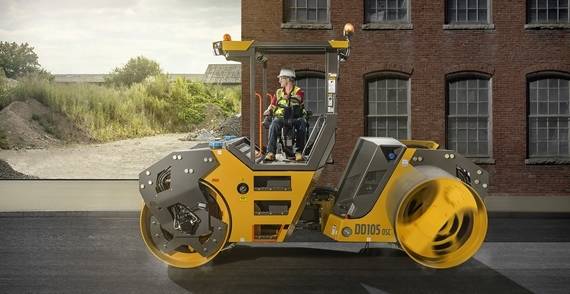

Compact in delicate environments, such as on bridges, over pipes and close to residential areas, with the DD105 OSC model variant.
ASPHALT COMPACTORS
Industry-leading, automatic drum wetting system provides uniform drum coverage to prevent material pick-up.
PILLAR-LESS VIEW
Swing-up hood design provides easy and complete access to the engine and hydraulic components for efficient inspections and maintenance.
