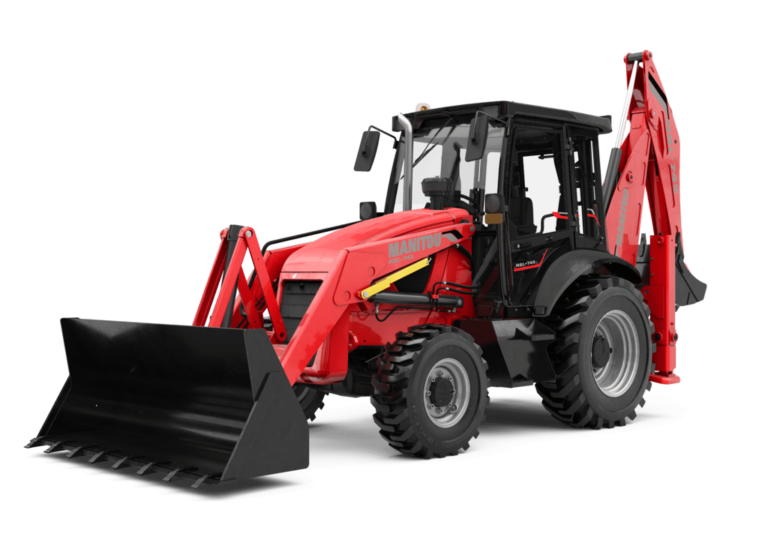

Manitou MBL 745 HT Ranger

BACKHOE LOADER
ENQUIRE NOW CALL US
OVERVIEW

The Manitou MBL 745 HT Ranger is a backhoe loader built with advanced, robust features for multi-application work. Powered by a BS-V turbocharged engine, the Ranger variant is built for robustness and improved working on harder surfaces. Its curved boom keeps efficiency on harder strata, and its narrow width eases operation in confined areas and improves rear visibility. Contact Team Engineers for complete product information, specifications, and pricing.

KEY BENEFITS
  • ✓Curved boom for robustness on harder digging surfaces
  • ✓Narrow width for operation in confined urban areas
  • ✓315 mm ground clearance for rough terrain clearance
  • ✓Improved rear visibility for safer site operation
  • ✓4WD available for all-terrain applications
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Applications FAQs
Technical Specifications

Manitou MBL 745 HT Ranger Full Specs

Capacities
Wheelbase 2 wheels drive2185 mm
Wheelbase 4 wheels drive2140 mm
Weight and dimensions
Unladen weight with 2 WD7750 kg
Unladen weight with 2 WD 7 in 18040 kg
Unladen weight with 4 WD7845 kg
Unladen weight with 4 WD 7 in 18135 kg
Overall length7340 mm
Overall width2330 mm
Cabin height2900 mm
Overall height3520 mm
External turning radius over tyres (braked) / External turning radius over tyres (braked) 4WD3.30 m / 3.85 m
External turning radius over tyres (unbraked) / External turning radius over tyres (unbraked) 4WD4.30 m / 4.20 m
External turning radius over bucket (braked) / External turning radius over bucket (braked) 4WD5 m / 5.55 m
External turning radius over bucket (unbraked)5.75 m
Standard tires front / rear9.0 x 16 - 16 PR / 16.9 x 28-12 PR
Optional tires (front / rear)9 x 16 - 16 PR / 12.50 x 18 -12 PR / 14 x 25 - 20 PR / 16.9 x 28 - 12 PR
Reach at travelling2030 mm
Rear axle center to slew center1308 mm
Ground clearance315 mm
Unladen weight7300 kg
Height of cab with air conditioning (option)2860 mm
Performances
Travel speed forward 1st / 2nd5.40 km/h / 8.60 km/h
Travel speed forward 3rd / 4th19.90 km/h / 40 km/h
Engine
Engine brandM&M
Engine model / normMCVNC35TI074CE5A Turbocharged CEV BS-V - BS-V
Displacement3.50 l
Engine power (kW) / Gross Power55 kW @ 2200 rpm
Max. torque / Engine rotation400 Nm @ 1200 rpm
Battery voltage / capacity12 V / 165 Ah
Transmission
Transmission brandCarraro
Number of gears (forward / reverse)4 / 4
Torque converter stall ratio2.64:1
Service brakeWet disc brakes
Hydraulics
Hydraulic flow119 l/min
Main relief pressure225 bar
Hydraulic pump typeGear pump
Tank capacities
Hydraulic oil75 l
Cooling liquid16 l
Fuel tank capacity130 l
Transmission oil17.50 l
Engine oil13.50 l
Oil rear axle17.10 l
Oil rear axle 4WD17.50 l
Bucket
Backhoe standard capacity0.27 m³
Width backhoe bucket889 mm
Loader standard capacity1 m³
Width loader bucket2235 mm
Miscellaneous
Power steeringYes
Steering wheels (front / rear)2 / 2
Front steer axle of oscillation20 °
Front steer axle of oscillation 2WD16 °

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Where It Works

Designed for Every Application

The MBL-745-HT-Ranger delivers reliable performance across a wide range of industries and applications in India.

🏗️
General Construction

Foundation digging, backfilling, and leveling.

🛣️
Road Building

Sub-grade preparation and trench digging.

🔧
Utility Trenching

Water, sewer, gas, and electrical trenching.

🌾
Agriculture

Field drainage, irrigation channels, land clearing.

🏚️
Demolition

Structure removal and site clearing operations.

🏠
Residential Projects

House foundation and compound development.

💧
Irrigation

Canal work, pond digging, and water management.

🏢
Urban Infrastructure

Municipal works, drainage, and paving projects.

FAQs

Frequently Asked Questions

What is the Manitou MBL 745 HT Ranger?+
A heavy-duty backhoe loader designed for digging, loading, lifting, and construction tasks with rugged performance.
What jobs is it suited for?+
Construction, roadwork, utilities, landscaping, and agricultural applications.
What is the operating weight?+
Approximately 7–8 tonnes (varies by configuration).
What is the loader bucket capacity?+
Typically 0.8–1.2 m³, depending on the bucket type.
What is the maximum digging depth?+
Around 4–5 meters with the backhoe attachment.
What are its main functions?+
Digging, trenching, loading, lifting, and material handling.
Is the MBL 745 HT Ranger fuel-efficient?+
Yes, it delivers efficient performance with optimized fuel use.
What attachments are compatible?+
Buckets, breakers, augers, and other backhoe loader tools.
Does it come with warranty and service support?+
Yes, includes manufacturer warranty and dealer support.
How can I get pricing or a quote?+
Contact Team Engineers for current pricing and availability.
