Manitou MBL 745 HT+

BACKHOE LOADER
ENQUIRE NOW CALL US
OVERVIEW

The Manitou MBL 745 HT+ is a backhoe loader built with advanced, robust features for multi-application work. Powered by a BS-V turbocharged engine, this variant is built for improved operational economics, and its variable displacement pump handles hydraulic flow rate and pressure according to load, improving cycle time compared with higher-power engines. Contact Team Engineers for complete product information, specifications, and pricing.

KEY BENEFITS
  • ✓Variable displacement pump for improved hydraulic efficiency
  • ✓Better cycle time without requiring a higher-power engine
  • ✓Significant fuel savings on intensive operations
  • ✓4WD option available for all terrain conditions
  • ✓Same proven M&M engine as MBL 745 HT
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Applications FAQs
Technical Specifications

Manitou MBL 745 HT+ Full Specs

Capacities
Wheelbase 2 wheels drive2185 mm
Wheelbase 4 wheels drive2140 mm
Weight and dimensions
Unladen weight with 2 WD7860 kg
Unladen weight with 2 WD 7 in 18150 kg
Unladen weight with 4 WD7955 kg
Unladen weight with 4 WD 7 in 18245 kg
Overall length7290 mm
Overall width2330 mm
Cabin height2900 mm
Overall height3790 mm
External turning radius over tyres (braked) / External turning radius over tyres (braked) 4WD3.30 m / 3.85 m
External turning radius over tyres (unbraked) / External turning radius over tyres (unbraked) 4WD4.30 m / 4.20 m
External turning radius over bucket (braked) / External turning radius over bucket (braked) 4WD5 m / 5.55 m
External turning radius over bucket (unbraked)5.75 m
Standard tires front / rear9.0 x 16 - 16 PR / 16.9 x 28-12PR
Optional tires (front / rear)9.0 x 16 - 16 PR / 12.5 x 18 - 12 PR / 14.0 x 25 - 20 PR / 16.9 x 28 - 12 PR
Reach at travelling2030 mm
Rear axle center to slew center1308 mm
Ground clearance315 mm
Performances
Travel speed forward 1st / 2nd5.40 km/h / 8.60 km/h
Travel speed forward 3rd / 4th19.90 km/h / 40 km/h
Engine
Engine brandM&M
Engine model / normMCVNC35TI074CE5A Turbocharged CEV BS-V - BS-V
Displacement3.50 l
Engine power (kW) / Gross Power55 kW @ 2200 rpm
Max. torque / Engine rotation400 Nm @ 1200 rpm
Battery voltage / capacity12 V / 165 Ah
Transmission
Transmission brandCarraro
Number of gears (forward / reverse)4 / 4
Torque converter stall ratio2.64:1
Service brakeWet disc brakes
Hydraulics
Hydraulic flow143 l/min
Main relief pressure225 bar
Hydraulic pump typeAxial piston
Tank capacities
Hydraulic oil75 l
Cooling liquid16 l
Fuel tank capacity130 l
Transmission oil17.50 l
Engine oil13.50 l
Oil rear axle17.10 l
Oil rear axle 4WD17.50 l
Bucket
Backhoe standard capacity0.27 m³
Width backhoe bucket889 mm
Loader standard capacity1 m³
Width loader bucket2235 mm
Miscellaneous
Power steeringYes
Front steer axle of oscillation 2WD20 °
Front steer axle of oscillation 4WD16 °
Steering wheels (front / rear)2 / 2

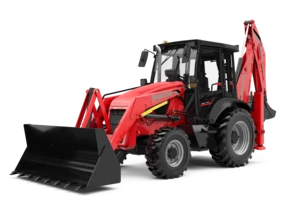

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Where It Works

Designed for Every Application

The MBL-745-HT-Plus delivers reliable performance across a wide range of industries and applications in India.

🏗️
General Construction

Foundation digging, backfilling, and leveling.

🛣️
Road Building

Sub-grade preparation and trench digging.

🔧
Utility Trenching

Water, sewer, gas, and electrical trenching.

🌾
Agriculture

Field drainage, irrigation channels, land clearing.

🏚️
Demolition

Structure removal and site clearing operations.

🏠
Residential Projects

House foundation and compound development.

💧
Irrigation

Canal work, pond digging, and water management.

🏢
Urban Infrastructure

Municipal works, drainage, and paving projects.

FAQs

Frequently Asked Questions

What is the Manitou MBL 745 HT Plus?+
A heavy-duty backhoe loader built for digging, loading, lifting, and versatile construction tasks.
What applications is it suited for?+
Construction, roadwork, utilities, landscaping, and agricultural projects.
What is the operating weight?+
Approximately 7–8 tonnes (varies by configuration).
What is the loader bucket capacity?+
Typically 0.8–1.2 m³, depending on the bucket used.
What is the maximum digging depth?+
Around 4–5 meters with the backhoe attachment.
What are its main functions?+
Digging, trenching, loading, lifting, and material handling.
Is the MBL 745 HT Plus fuel-efficient?+
Yes, designed for efficient performance and optimized fuel use.
What attachments are compatible?+
Buckets, breakers, augers, and other backhoe loader tools.
Does it come with warranty and service support?+
Yes — includes manufacturer warranty and dealer service support.
