Manitou 1640 R

Skid Steer Loader
ENQUIRE NOW CALL US
OVERVIEW

The Manitou 1640 R is a compact skid steer loader with a 748 kg rated operating capacity, powered by a 69 hp Yanmar 4TNV98C-BNMS2 BS-V engine and driven through a hydrostatic transmission. At 1582 mm wide without the bucket it is built to work accurately in narrow spaces on construction and landscaping sites, and Manitou designs it for a lower total cost of ownership through improved fuel efficiency and reduced maintenance. Contact Team Engineers for complete product information, specifications, and pricing.

KEY BENEFITS
  • ✓748 kg rated operating capacity
  • ✓69 hp Yanmar 4TNV98C-BNMS2 engine, BS-V emission norm
  • ✓Hydrostatic transmission
  • ✓1582 mm overall width less bucket for work in confined spaces
  • ✓Designed for lower total cost of ownership through fuel efficiency and reduced maintenance
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications Applications
Technical Specifications

Manitou 1640 R Full Specs

Capacities
Rated Operating Capacity748 kg
Unladen weight2860 kg
Tipping capacity1496 kg
Weight and dimensions
Wheelbase988 mm
Overall Operating Height - Fully Raised3876 mm
Height to Hinge Pin - Fully Raised3023 mm
Overall Height to top of ROPS1948 mm
Dump angle at full height38 °
Dump height2379 mm
Overall length with bucket3101 mm
Dump reach - Full height579 mm
Rollback at ground28 °
Rollback Angle at Full Height99 °
Seat to ground height930 mm
Overall width less bucket1582 mm
Bucket Width1562 mm
Ground clearance160 mm
Overall length - Less Bucket2390 mm
Departure angle21 °
Clearance Radius - Front with Bucket1869 mm
Rear departure angle21 °
Performances
Travel speed (unladen)12.60 km/h
Wheels
Transmission typeHydrostatic
Standard tires10 x 16.5 - 10 PR HD
Engine
Engine brandYanmar
Engine model4TNV98C-BNMS2
Engine normBS-V
Max. torque / Engine rotation241 Nm / 2500 rpm
Power sourceDiesel
Number of cylinders4
Engine power (Hp / kW)69 Hp / 51.70 kW
Battery voltage12 V
Alternator - Ampere100 A
Starter3 kW
Hydraulics
Standard flow - Auxiliary hydraulics71.40 l/min
Auxiliary Hydraulic Pressure207 bar
Tank capacities
Fuel tank capacity62.50 l
Hydraulic tank capacity41.60 l
Displacement3319 mm³
LH Chain case8.50 l
RH Chain case8.50 l

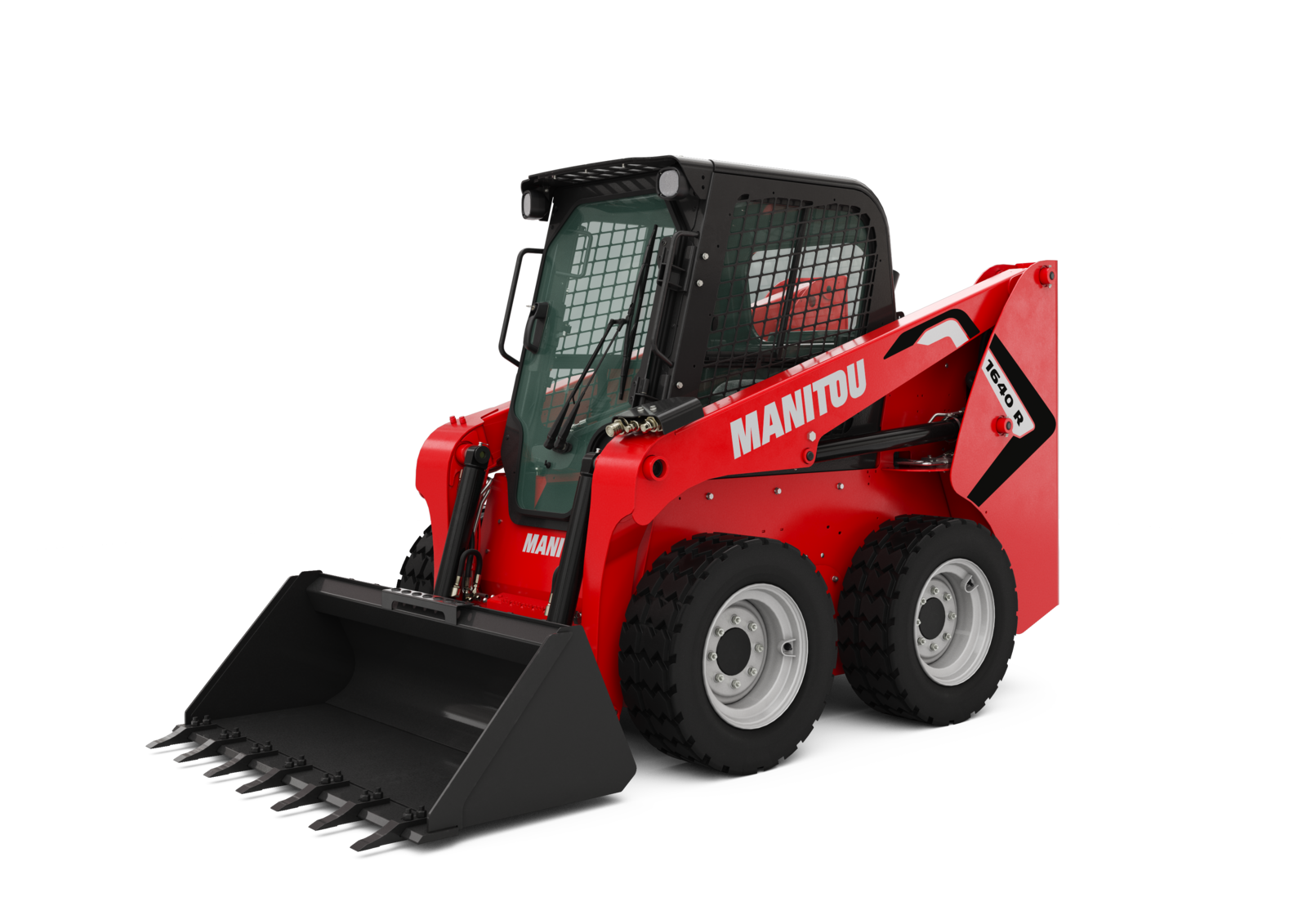

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Where It Works

Designed for Every Application

The 1640-R delivers reliable performance across a wide range of industries and applications in India.

🏗️
Construction

Work in confined spaces on construction sites.

🌳
Landscaping

Material handling and site work on landscaping projects.
