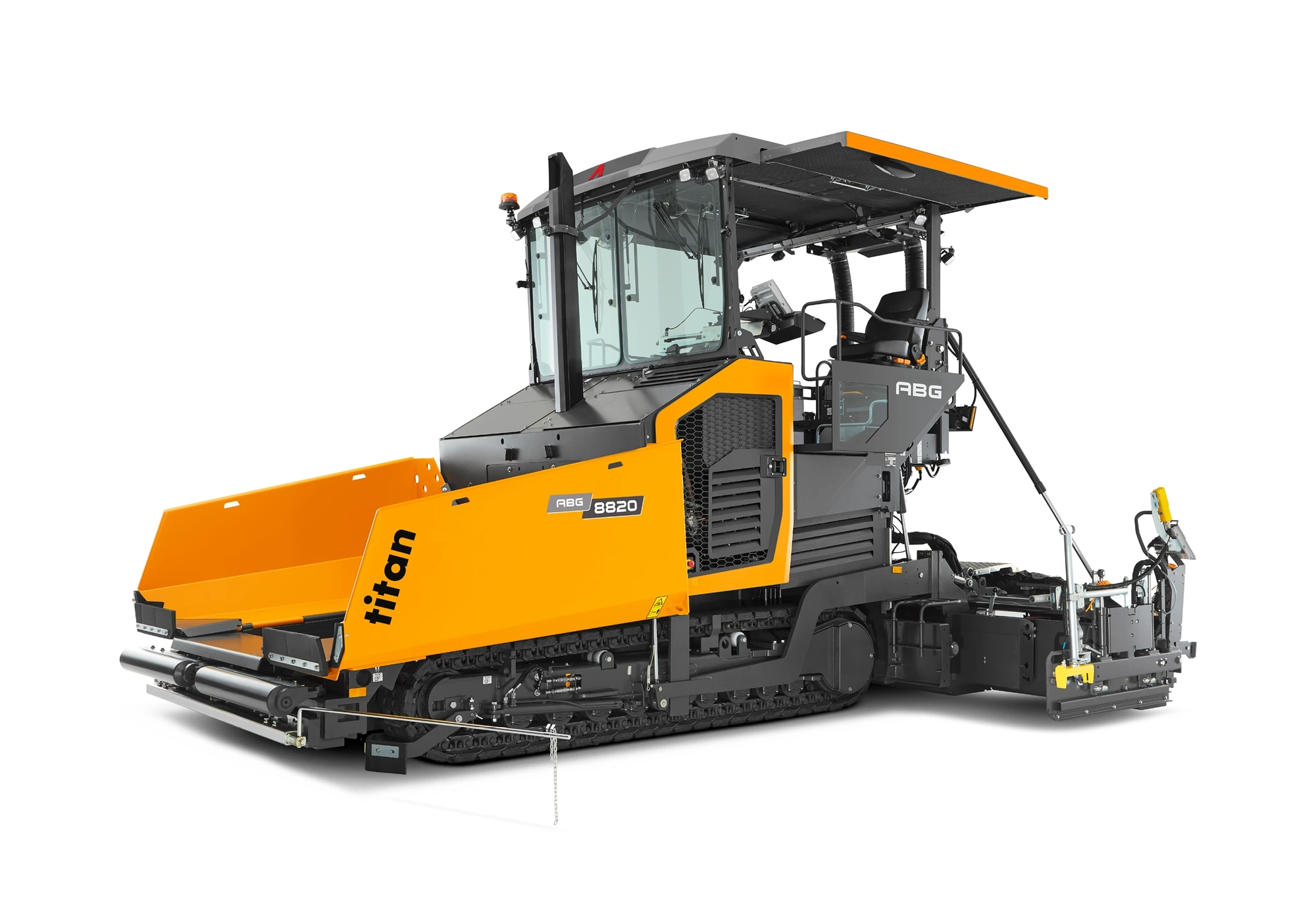

Ammann ABG 8820

ASPHALT PAVER
ENQUIRE NOW CALL US
OVERVIEW

Built for high production. A 13-metre paving width, large hopper and powerful engine ensure this machine excels on demanding production jobsites such as airports and highways.

KEY BENEFITS
  • Volvo (Deutz) Diesel engine, EU Stage V
  • Electronic drive control
  • Lifetime lubricated crawler track rollers
  • Forged and hardened crawler track links
  • Automatic track tensioner
  • Heavy push rollers
  • Proportional conveyor sensors
  • Proportional ultrasonic sensor auger control
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Overview Specifications
Technical Specifications

Ammann ABG 8820 Full Specs

ENGINE
Emission stageStage V
ManufacturerVolvo (Deutz)
Engine ModelD8J
Nominal speed2000 RPM
Power output ISO200 kW
Electrical system24 V
Fuel tank capacity250 L
WEIGHT & OPERATING CHARACTERISTICS
Tractor weight17350 kg
Weight (including standard screed)20950 kg
CAPACITY & PERFORMANCE
Paving output1100 t/h
Placement thickness (max.)30 cm
Paving speed (max.)20 m/min
Transport speed (max.)3.6 kph
Basic paving width2.5 m
Standard Screed - Extended5 m
Standard Screed - Maximum9 m
Screed 2 - Extended5 m
Screed 2 - Maximum9 m
Screed 3 - Retracted3 m
Screed 3 - Extended6 m
Screed 3 - Maximum10 m
Screed 4 - Retracted2.5 m
Screed 4 - Maximum13 m
Screed 5 - Retracted2.5 m
Screed 5 - Maximum13 m
Standard ScreedVB 78
Screed 2VB 79
Screed 3VB 88
Screed 4MB 122
Screed 5VDT 121
MATERIAL FEEDING SYSTEM
Hopper capacity14.7 t
Hopper width3342 mm
Conveyor TypeTwin Conveyors
Conveyor Speed23 m/min
Auger diameter360 mm
Auger Speed150 rpm

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
