Ammann ABG 5420
ASPHALT PAVER
OVERVIEW
Compact paver. Big performance. The ABG 5420 is a tracked asphalt paver designed for reliability and productivity in mid-scale projects. With a fuel-efficient Stage V engine, Omni V screed technology, and intuitive controls, it delivers consistent mat quality with minimal effort.
KEY BENEFITS
- ✓EICHER (E494 TCIC) engine, CEV stage V
- ✓Electronic drive control
- ✓Lifetime lubricated crawler track rollers
- ✓Forged and hardened crawler track links

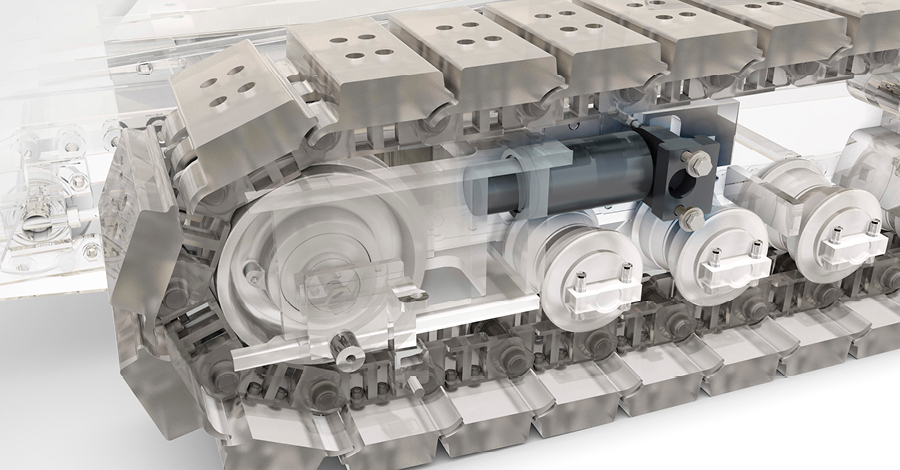

- ✓Automatic track tensioner
- ✓Heavy push rollers
- ✓Four individual hydrostatic drives for conveyors and augers
- ✓Auger speed control ON/OFF
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Technical Specifications
Ammann ABG 5420 Full Specs
ENGINE
Emission stageCEV Stage V
ManufacturerEICHER
Engine ModelE494 TCIC
Nominal speed2200 RPM
Power output ISO101 kW
Electrical system24 V
Fuel tank capacity230 L
WEIGHT & OPERATING CHARACTERISTICS
Tractor weight13480 kg
Weight (including standard screed)16750 kg
CAPACITY & PERFORMANCE
Paving output600 t/h
Placement thickness (max.)30 cm
Paving speed (max.)17 m/min
Transport speed (max.)3.3 kph
Basic paving width2.5 m
Standard Screed - Extended4.75 m
Standard Screed - Maximum7.5 m
MATERIAL FEEDING SYSTEM
Hopper capacity12 t
Conveyor Speed23 m/min
Auger diameter360 mm
Auger Speed82 rpm
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Features & Benefits
What Sets the ABG-5420 Apart
High traction
Tracked design and strong frame push 40-ton trucks with ease.
✓
