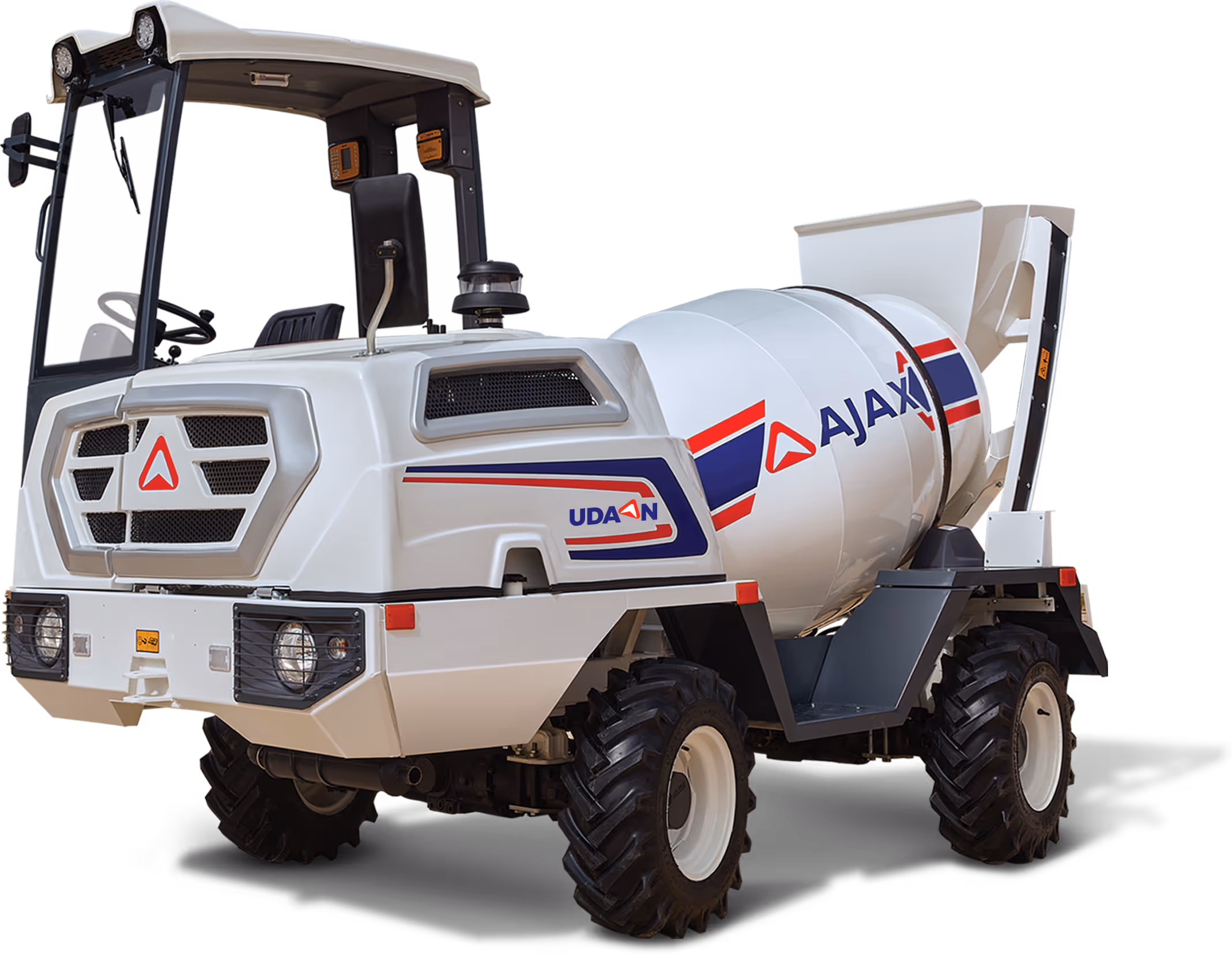

AJAX UDAAN
SELF-LOADING MIXER
OVERVIEW
A powerful self-loading concrete mixer engineered for speed, efficiency, and ease. With innovative design and robust performance, Udaan delivers maximum output with minimal effort, making it the ideal choice for urban projects, narrow sites, and fast-paced construction demands.
KEY BENEFITS
- ✓Single joystick for all loading operations
- ✓Loading arm with tilting hatch — minimal spillage
- ✓Self-loading: no separate loader required
- ✓Compact size for restricted site access
- ✓On-board water tank and pump for consistent w/c ratio
Team Engineers Advantage
20+
Years
4,500+
Machines
24/7
Support
100%
Genuine Parts
Technical Specifications
AJAX UDAAN Full Specs
TECH SPEC
DESCRIPTIONUNITS
EngineMMDI20NA025CE5 18.5 kW @ 2200 rpm CEV Stage 5
Drum Capacity0.8 cum
Drum Output0.8 cu m/batch** Subject to conditions
Drum Rotation Speed Max18 rpm
VariantNon-swivel
Heavy Duty Tyre10.0 / 75 x 15.3
Bucket Capacity225 Ltr
Water Pump80-90 lpm
Water Tank Capacity45 ltr
Fuel Tank Capacity25 Ltr
Hydraulic Tank45 L
Vehicle Speed0-13 kmph
Gradeability14.5 Degree (Laden)
Power18.5 kW @ 2200 rpm
Torque127 Nm @ 1200-1400 rpm
EmissionCEV Stage 5
ChassisDurable design for heavy-duty performance
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Features & Benefits
What Sets the udaan Apart
Heavy-Duty Axle
Ensures superior load-bearing capacity and durability for tough construction conditions.
Bolted Cabin Design
Enhanced structural integrity with easy replacement or maintenance options.
FAQs
Frequently Asked Questions
What is the Ajax UDAAN?+
The Ajax UDAAN is a self-loading concrete mixer designed to mix, transport, and discharge concrete on-site, boosting productivity and reducing labor.
What is the drum output capacity?+
It has a 0.8 cubic meter per batch drum output for efficient concrete production.
What is the loader bucket capacity?+
The bucket capacity is typically 225 liters for material loading.
What is the machine weight?+
It has an operating weight of around 3,000 kg.
What type of projects is it suited for?+
Ideal for small to medium construction projects, such as roads, foundations, housing, irrigation works, and urban infrastructure.
What engine and drivetrain features does it have?+
It typically features a diesel engine with hydrostatic 4WD drive for reliable power and good gradeability.
Does it help reduce manual labor?+
Yes — its self-loading capability automatically loads materials, saving time and reducing dependence on manual labor.
Is it easy to operate?+
Yes — it comes with batch controller and ergonomic controls for simple, accurate concrete mixing.
Does it come with warranty and service support?+
Yes — includes manufacturer warranty and dealer support (check with Team Engineers for details).
How can I get pricing or a quote?+
Contact Team Engineers for current pricing, availability, and a customized quotation.
Question+
Answer
What is AJAX UDAAN?+
AJAX UDAAN is a powerful concreting solution designed for speed, efficiency, and ease of operation.
What type of machine is AJAX UDAAN?+
AJAX UDAAN is a compact concreting machine designed for efficient concrete transportation and batching applications.
What is the drum capacity of AJAX UDAAN?+
The drum capacity is 0.8 cubic meters (0.8 cum).
What engine does AJAX UDAAN use?+
AJAX UDAAN is powered by the MMDI20NA025CE5 engine.
What is the engine power of AJAX UDAAN?+
The engine produces 18.5 kW at 2200 rpm.
What is the torque of AJAX UDAAN?+
It delivers 127 Nm of torque at 1200-1400 rpm.
Which emission standard does AJAX UDAAN meet?+
AJAX UDAAN complies with CEV Stage 5 emission norms.
What is the maximum travel speed?+
The maximum vehicle speed is 13 kmph.
What is the maximum drum rotation speed?+
The drum rotates at a maximum speed of 18 rpm.
What is the bucket capacity?+
The bucket capacity is 225 liters.
What is the water tank capacity?+
The water tank has a capacity of 45 liters.
What is the hydraulic tank capacity?+
The hydraulic tank capacity is 45 liters.
What is the fuel tank capacity?+
The fuel tank capacity is 25 liters.
What water pump does AJAX UDAAN have?+
It is equipped with a self-priming water pump with a flow rate of 80-90 lpm.
What tyre size does AJAX UDAAN use?+
The machine uses 10.0 / 75 x 15.3 tyres.
What is the gradeability of AJAX UDAAN?+
The machine offers 14.5° gradeability when laden.
What type of chassis does AJAX UDAAN have?+
It features a durable chassis designed for heavy-duty performance.
Is AJAX UDAAN a swivel or non-swivel machine?+
AJAX UDAAN is available in a non-swivel variant.
What are the key engineering features of AJAX UDAAN?+
Key features include a heavy-duty axle, bolted cabin design, optimized drum and spiral blades, pressure transducer system, advanced 4WD system, and a self-priming water pump.
What business benefits does AJAX UDAAN offer?+
AJAX highlights features such as turning earnings into payments, up to 55% savings, progressive design, mobility advantage, and maximum output with minimal effort.
What accessories are available for AJAX UDAAN?+
Available accessories include a water pump, cabin cover, and external chute.
What variants are available in AJAX UDAAN?+
AJAX UDAAN is available in W1, W2, W3, and W4 variants.
Which AJAX UDAAN variant includes a water flow meter?+
W2, W3, and W4 include a water flow meter, while W1 does not.
Which AJAX UDAAN variants support water batching?+
Water batching is available in W3 and W4 variants.
Which AJAX UDAAN variants support weight batching?+
Weight batching is available in W3 and W4 variants.
Is AJAX UDAAN ARAI certified?+
Yes. AJAX UDAAN is ARAI certified.
Is AJAX UDAAN manufactured in India?+
Yes. The brochure highlights AJAX UDAAN as "Made in India, Made for the World."
Where can AJAX UDAAN be used?+
AJAX UDAAN is suitable for construction sites requiring fast, efficient, and mobile concreting solutions. This use case is inferred from the brochure's positioning.
✓
