AJAX CRB 45
The AJAX CRB 45 is a concrete batching plant built around a twin-shaft mixer, intended for large-scale concrete production. AJAX publishes a concrete output of 45 cu m/hr and a mixer capacity of 1250 ltr / 750 ltr. Contact Team Engineers for complete product information, specifications, and pricing.
- ✓45 m³/hr for large construction and RMC projects
- ✓Higher mixer capacity for consistent batch quality
- ✓Multi-compartment admixture system included
- ✓Remote monitoring option via control room interface
- ✓Suitable for housing complexes, roads and bridges
AJAX CRB 45 Full Specs

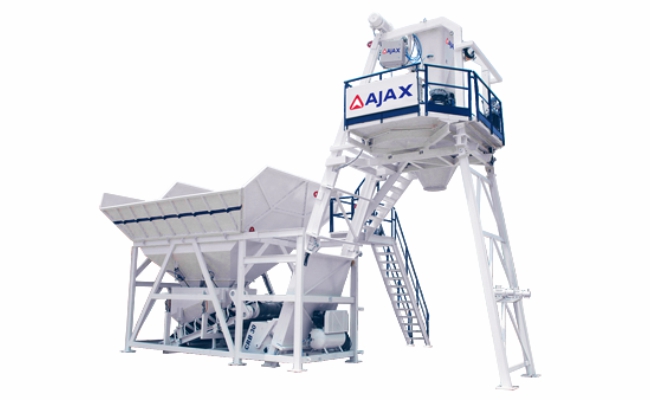

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
What Sets the CRB-45 Apart
Modular is the future
Foldable Mixer unit, panels and swivelable operators’ cabin for Single day erection and dismantling, Plug and play feature, One truck required for transportation of entire Plant.
Aggregate Bins
Low bin height allowing direct loading of bins, Elimination of Conveyer mechanism saves cost & space on site, Ramp Max height limited to 1m saving cost, Cabin design allows it to be pivoted on the machine as well as setup away from the machine, helping to customize the site.
Planetary Mixer
Faster Mixing of concrete and faster discharge, Round mixing arms in NiCr special steel, One rotating star with 3 mixing blades, Heavy duty reduction unit in mixer gear box.
Skip System
Dual rope system with winding guide and winch drum, Limit switches for feeding, waiting and discharge positions, Emergency switches for slack/failure wire protection and safety grids, Designed to reduce the space required.
Ease of Maintenance
Top mounted drive motor allows easy access for servicing of planetary mixer components, Replaceable wall and floor liners.
Additive Batching
Automatic Liquid Additive Dosing Unit Complete with supporting trestle, electrical equipment cables, hoses,fittings and complementary accessories.
SCADA Based Control Panel with PLC Unit
4 weight indicators (each one for Aggregate, Cement, Water and Admix), Unlimited Data storage, Auto/manual moisture (water) correction possible.
Designed for Every Application
The CRB-45 delivers reliable performance across a wide range of industries and applications in India.
