AJAX ASP 7011
The AJAX ASP 7011 is a stationary concrete pump suited to a wide range of stationary concrete pumping applications. AJAX rates it at a maximum concrete output of 70 cu m/hr from a 100 hp engine. Contact Team Engineers for complete product information, specifications, and pricing.
- ✓70 m³/hr for large-volume structural concrete pours
- ✓Large 200mm cylinder for high throughput
- ✓600L hopper for uninterrupted continuous feeding
- ✓Hardox wear-resistant S-valve for long component life
- ✓Suitable for raft foundations, large floor slabs, dams
AJAX ASP 7011 Full Specs

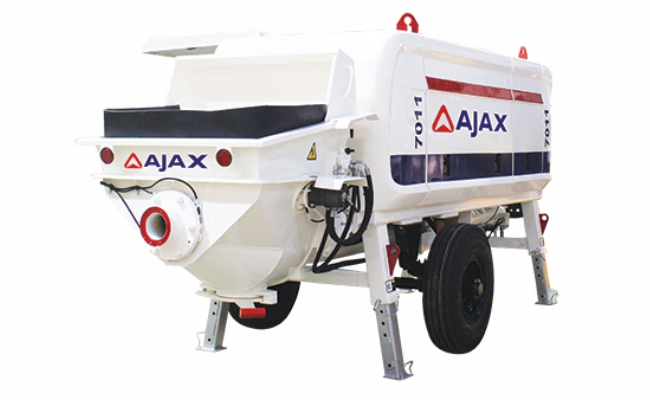

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
What Sets the ASP-7011 Apart
Wear Plate & Wear Ring
A TUNGSTEN CARBIDE wear plate and wear ring Providing a longer ilfe span (upto 300% longer than non-carbide wear parts) which keeps maintenance costs down.
Hopper
Triangular paddles in the hopper ensure concrete flow within the pump is smooth and unhindered.
Hydraulic Sensing Valve
This is the major valve for Hydraulic Changing System. Hydraulic Sensing valve guarantees good durability, long life and free form electrical problem.
Remote Control
The Concrete Pump comes complete with a 10 meter cable remote control as an optional feature.
Greasing System
To reduce maintenance, the pumping units are equipped with an automatic greasing system including electric pump with grease tank. Automatic greasing system comes as an optional feature.
Split Ram
The replacable sealkit are easily changed by quick detachable connections. The sealkit are especially sutiable for high pressure and abrasive concrete. More economical for all operational conditions. Service life that is upto 3 times longer than solid ram.
Concrete Cylinder
The hard chrome plated concrete cylinders offer less frictional resistance for ram movement. Which also ensures extended service life due to high resistance to wear and corrosion.
Designed for Every Application
The ASP-7011 delivers reliable performance across a wide range of industries and applications in India.
On-demand fresh concrete for housing developments.
Road construction in remote areas without RMC access.
Farm structures, water tanks, rural infrastructure.
Check dams, canals, rural water infrastructure.
Footings, slabs, and columns for small builders.
Large residential colony development.
Factory floors, equipment pads, warehouse slabs.
Repair work and small concrete placements.
