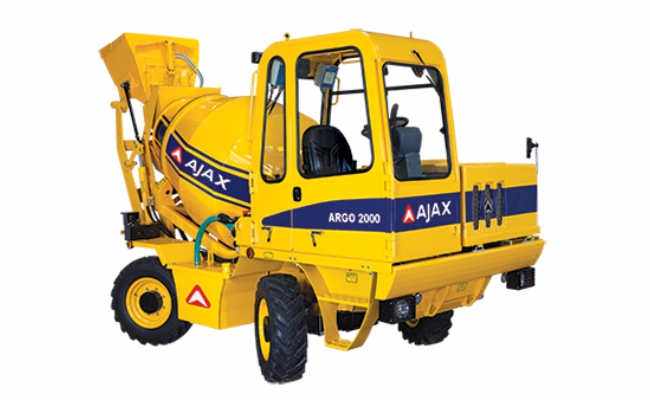

AJAX ARGO 2000

Name: AJAX ARGO 2000
Brand: AJAX

SELF-LOADING MIXER

ENQUIRE NOW CALL US

OVERVIEW

The AJAX ARGO 2000 is a self-loading concrete mixer for mixing concrete on site. AJAX gives it a drum output of 2 cu m per batch, subject to conditions. Contact Team Engineers for complete product information, specifications, and pricing.

KEY BENEFITS

✓2 m³ output per batch for mid-scale building projects
✓4WD hydrostatic drive for all site conditions
✓Onboard water system for precise water-cement ratio
✓Rotating drum for consistent mixing quality
✓Minimal crew requirement — single operator efficient

Team Engineers Advantage

20+

Years

4,500+

Machines

24/7

Support

100%

Genuine Parts

Technical Specifications

AJAX ARGO 2000 Full Specs

TECH SPEC

DESCRIPTIONSPECIFICATION

EngineKirlosker 36.09kw @2200 rpm CEV stage V

Machine WeightUnladen Weight 5661 kg

Bucket Capacity320 ltr

Heavy Duty Tyre12.0/75-18-14 PR

Water Tank Capacity360 ltr

Vehicle Speed22 kmph

Drum Output2 Cu.m/batch* *Subject to conditions

Fuel Tank Capacity64 ltr

DIMENSIONAL SPECIFICATIONS

DIMENSIONAL CODEDIMENSIONS IN MM

A2887

B6132

C3320

D280

E2177

F1150

G3287

H2070

I-

J270

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features & Benefits

What Sets the ARGO-2000 Apart

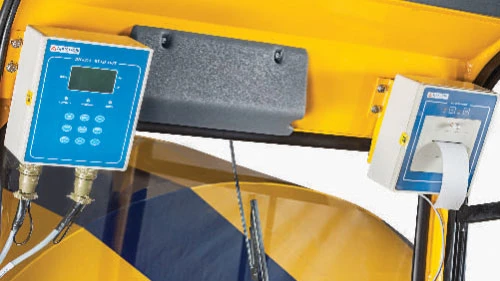

Concrete Batch Controller

Accurately measures all the ingredients to produce high quality concrete.

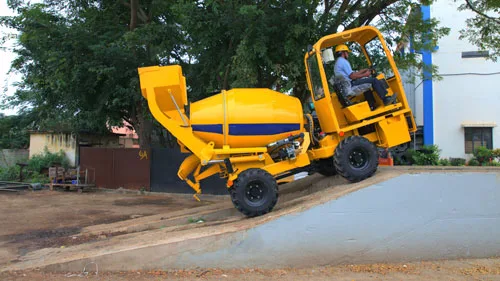

High Gradeability

Highly efficient in steep inclined terrains, Advance technology for delivering concrete even at inclined position.

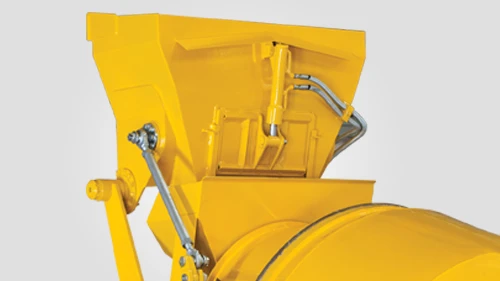

Self Loading Arm with Hatch Bucket

The Loading arm with tilting hatch bucket ensures smooth flow of material into the drum, thus minimising spillage.

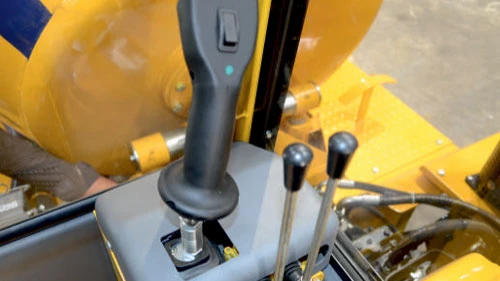

Ease of Operation

Single joystick for loading operation, Hydraulically operated levers for easy handling of operations.

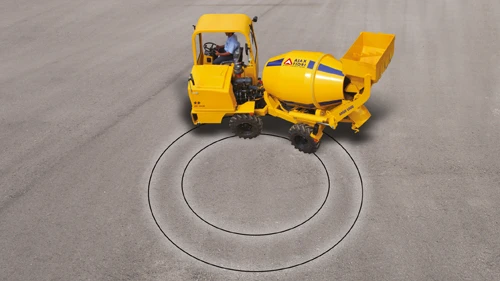

Tight Turning Radius

The Articulation of Chassis allows easy manoeuverability in narrow space and in tight turning radius.

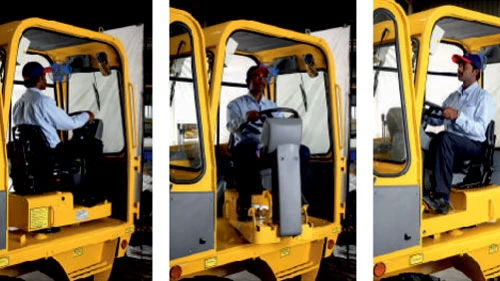

Reversible Operator Post

Provised complete visibility to the operator when the ARGO is in motion or during loading/unloading operation.

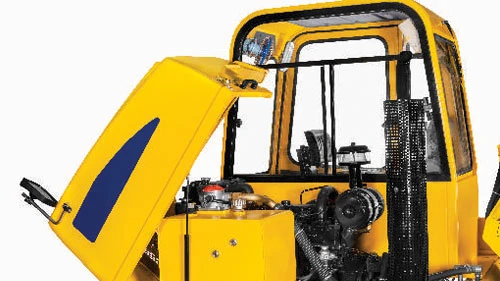

Ease of Maintenance

Excellent design permits ease of accessibilty and maintenance.

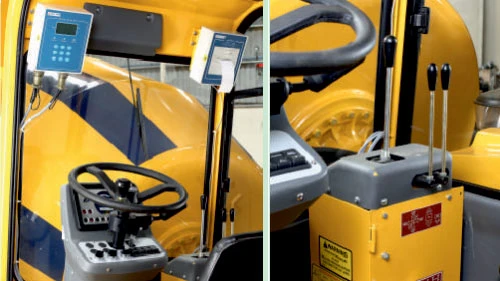

Ergonomic Design

The cabin is designed to enhance the efficiency of the operator and allowing him to work for longer hours.

Add-ons to tailor fit your project

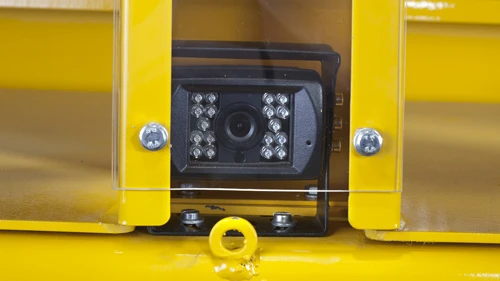

Rear view Camera.

FAQs

Frequently Asked Questions

What is the Ajax ARGO 2000?+

The Ajax ARGO 2000 is a self-loading concrete mixer designed to load, mix, transport, and discharge concrete directly on site.

What is the output capacity?+

It delivers approximately 2.0 cubic meters per batch.

What type of projects is it suitable for?+

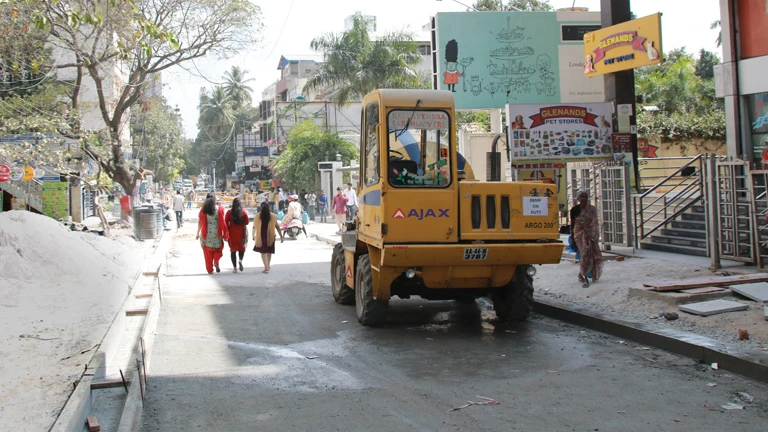

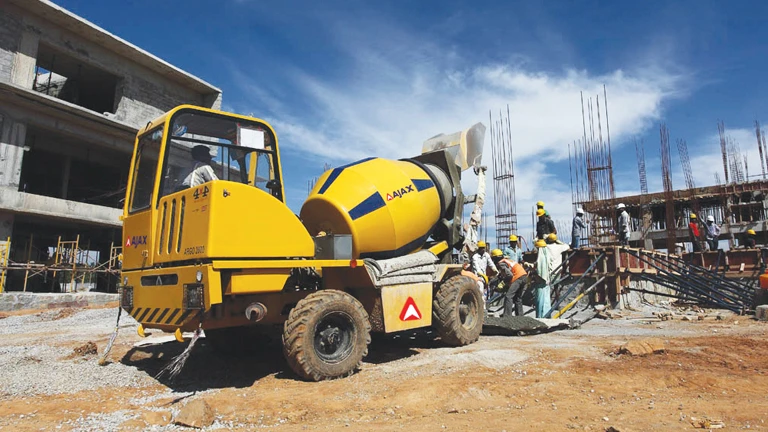

Ideal for small to medium construction projects such as roads, foundations, housing, and infrastructure work.

What engine and drive system does it have?+

It is powered by a diesel engine with 4-wheel drive, providing strong performance on rough terrain.

What is the bucket capacity?+

The loader bucket capacity is approximately 320 liters.

Is the ARGO 2000 easy to operate?+

Yes, it features simple controls and a self-loading arm for smooth operation.

Does it reduce manual labor?+

Yes, the self-loading system automates material handling, significantly reducing manual effort.

Is the ARGO 2000 fuel-efficient?+

Yes, it is engineered for efficient fuel consumption and continuous on-site productivity.

Does it come with warranty and service support?+

Yes, it includes manufacturer warranty and authorized service support.

How can I get pricing or a quote?+

Contact Team Engineers for current pricing, availability, and a customized quotation.
